DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksAmes Fire & Waterworks ASCV

Ames Fire & Waterworks Anti-Siphon/Chemigation Check Valve (Check Valve). Model ASCV. Prevents backflow of water and chemical mixtures into potable water supply; Spring swing silent check valve prevents water hammer; Includes vacuum breaker for air release and vacuum relief; Includes automatic low pressure drain that closes at 2.5 psi (17.2 kPa). material: Galvanized steel body, cast aluminum vacuum breaker, plastic low pressure drain

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFAmes-Fire-Waterworks-ASCV.pdfData sheet

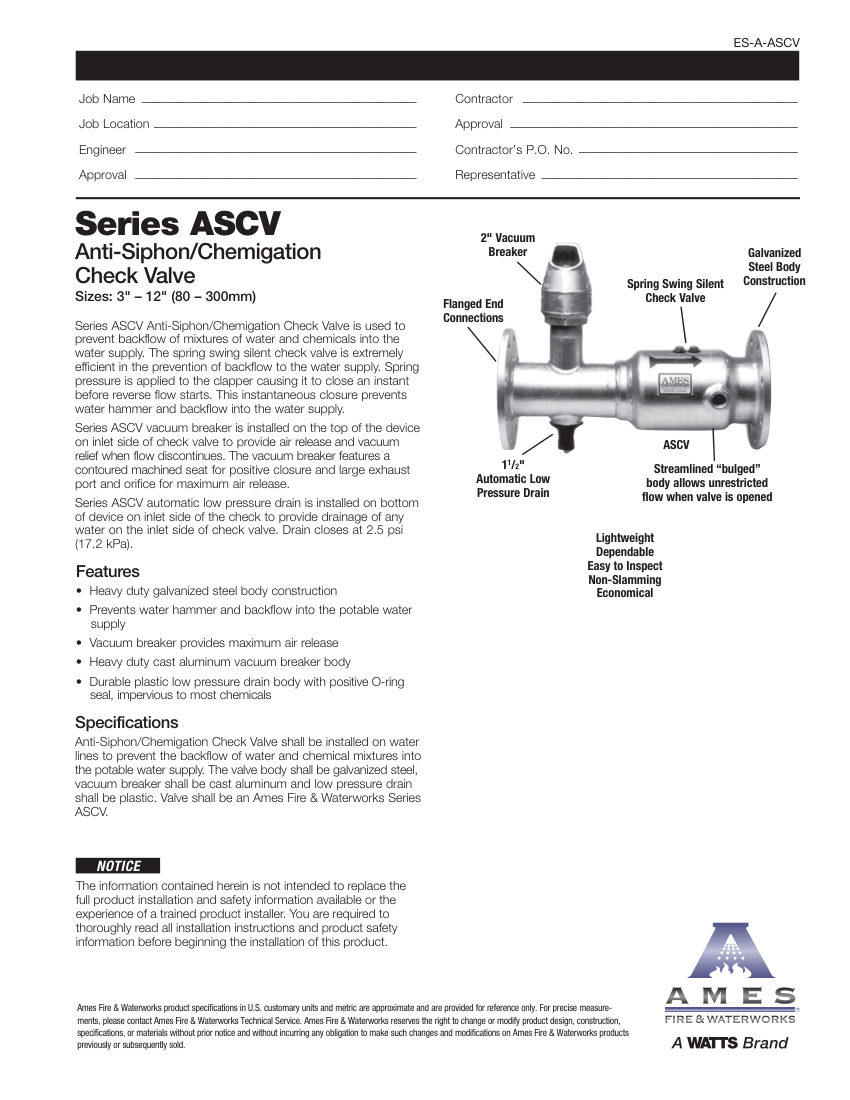

Ames Fire & Waterworks Ames Fire & Waterworks ASCV cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
Ames Fire & Waterworks ASCV
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberAmes Fire & Waterworks ASCV
DescriptionAmes Fire & Waterworks Anti-Siphon/Chemigation Check Valve (Check Valve). Model ASCV. Prevents backflow of water and chemical mixtures into potable water supply; Spring swing silent check valve prevents water hammer; Includes vacuum breaker for air release and vacuum relief; Includes automatic low pressure drain that closes at 2.5 psi (17.2 kPa). material: Galvanized steel body, cast aluminum vacuum breaker, plastic low pressure drain
Connection size3" – 12" (80 – 300mm)
End connectionFlanged
Pressure Rating150 psi (10 bars).
