DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksAmes Fire & Waterworks AVS

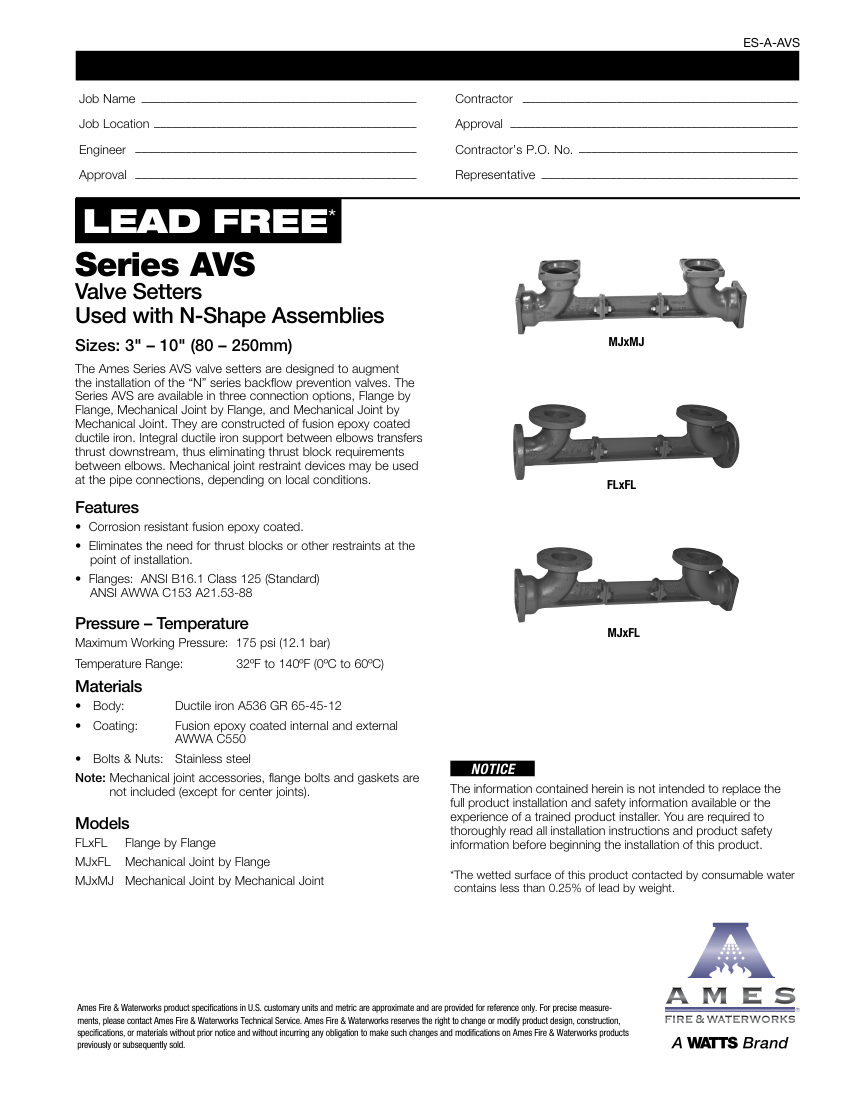

Name: Ames Fire & Waterworks Ames Fire & Waterworks AVS
Brand: Ames Fire & Waterworks
SKU: Ames Fire & Waterworks AVS

Ames Fire & Waterworks Valve Setter (Valve Setters). Model Series AVS. Maximum Working Pressure: 175 psi (12.1 bar)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	Ames Fire & Waterworks AVS
Description	Ames Fire & Waterworks Valve Setter (Valve Setters). Model Series AVS. Maximum Working Pressure: 175 psi (12.1 bar)
Temperature Range	32ºF to 140ºF (0ºC to 60ºC)
Body Material	Ductile iron A536 GR 65-45-12
Coating	Fusion epoxy (AWWA C550). material: Ductile iron A536 GR 65-45-12, Fusion epoxy coated
Connection size	3" – 10" (80 – 250mm)
End connection	Flange by Flange, Mechanical Joint by Flange, Mechanical Joint by Mechanical Joint
Pressure Rating	175 psi (12.1 bar)
Finish	Fusion epoxy coated internal and external
Compliance	ANSI B16.1 Class 125, ANSI AWWA C153 A21.53-88, AWWA C5

01
