DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksAmes Fire & Waterworks FPP, FFF

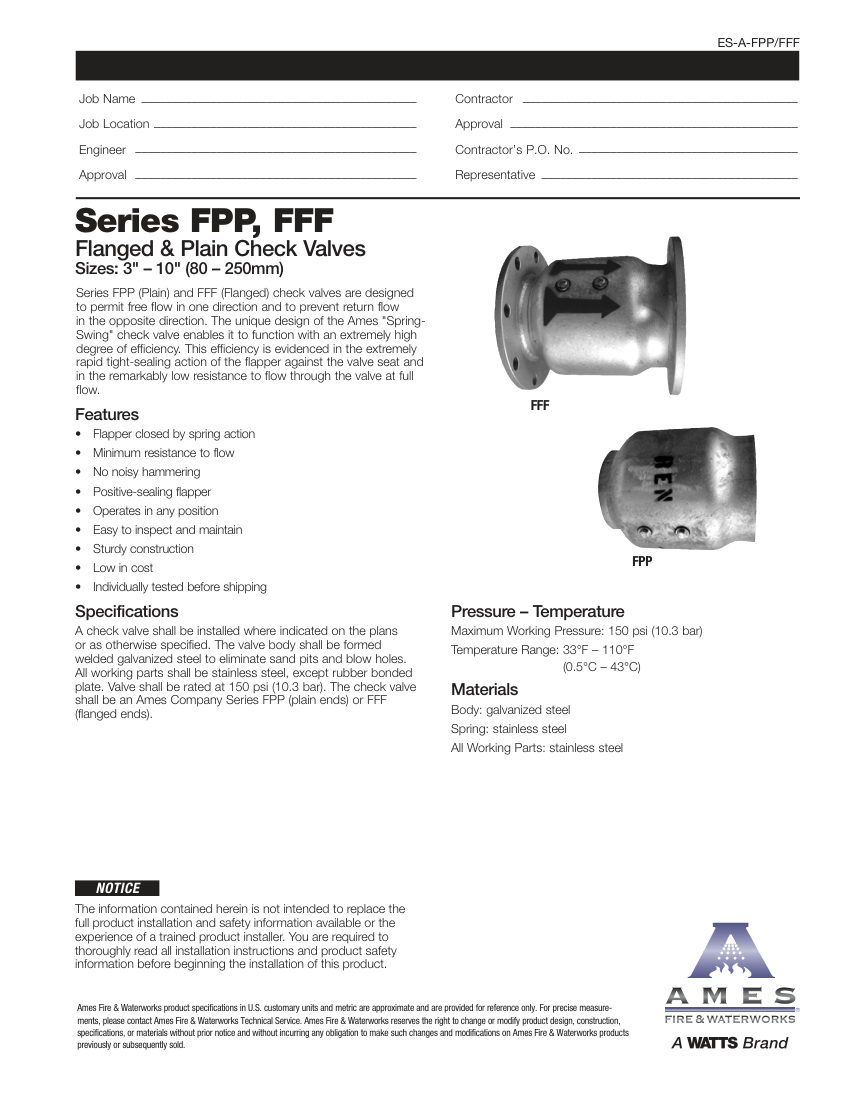

Name: Ames Fire & Waterworks Ames Fire & Waterworks FPP, FFF
Brand: Ames Fire & Waterworks
SKU: Ames Fire & Waterworks FPP, FFF

Ames Fire & Waterworks Spring-Swing Check Valve (Check Valves). Model Series FPP, FFF. Maximum Working Pressure: 150 psi (10.3 bar)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	Ames Fire & Waterworks FPP, FFF
Description	Ames Fire & Waterworks Spring-Swing Check Valve (Check Valves). Model Series FPP, FFF. Maximum Working Pressure: 150 psi (10.3 bar)
Temperature Range	33°F – 110°F (0.5°C – 43°C)
Body Material	Welded galvanized steel
Working Parts	Stainless steel. material: Galvanized steel body, stainless steel working parts
Connection size	3" – 10" (80 – 250mm)
End connection	Plain (FPP) or Flanged (FFF)
Pressure Rating	150 psi (10.3 bar)
Finish	Galvanized
Mounting	Operates in any position.
