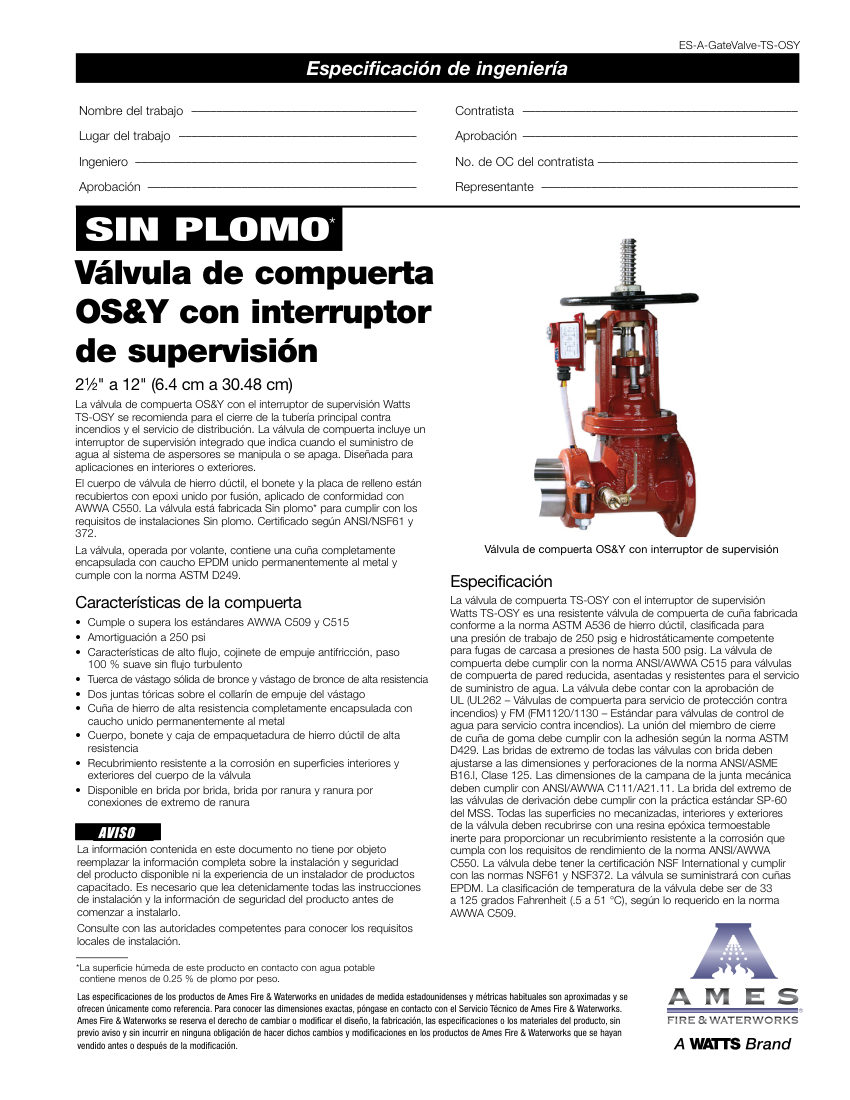

Ames Fire & WaterworksAmes Fire & Waterworks Gate Valve TS-OSY (Spanish)
Ames Fire & Waterworks OS&Y Gate Valve with Supervisory Switch (Gate Valve). Model TS-OSY. Includes integrated supervisory switch for sprinkler system monitoring; Fully encapsulated EPDM wedge bonded to metal per ASTM D249; Lead-free construction with <0.25% lead by weight; Temperature rating 33°F to 125°F (0.5°C to 51°C). material: Ductile Iron (ASTM A536), EPDM Wedge
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Ames Fire & Waterworks
- Catalog no.
- Ames Fire & Waterworks Gate Valve TS-OSY (Spanish)
- Product type
- Plumbing
- MasterFormat
- 22
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | Ames Fire & Waterworks Gate Valve TS-OSY (Spanish) |
|---|---|
| Description | Ames Fire & Waterworks OS&Y Gate Valve with Supervisory Switch (Gate Valve). Model TS-OSY. Includes integrated supervisory switch for sprinkler system monitoring; Fully encapsulated EPDM wedge bonded to metal per ASTM D249; Lead-free construction with <0.25% lead by weight; Temperature rating 33°F to 125°F (0.5°C to 51°C). material: Ductile Iron (ASTM A536), EPDM Wedge |
| Connection size | 2.5" to 12" (6.4 cm to 30.48 cm) |
| End connection | Flange to Flange, Flange to Groove, Groove to Groove |
| Pressure Rating | 250 psig working, 500 psig hydrostatic |
| Finish | Fusion-bonded Epoxy (AWWA C550); compliance: |
