Ames Fire & Waterworks Relief Valve Discharge Rate Data (Backflow Prevention). Model ES-A-LFRVD. Applies to Reduced Pressure Zone Assemblies Series 4000B, 4000CIV, 4000SS, 4000RP, 5000CIV, 5000RPDA, 5000SS, Colt/Maxim 400, 500; Curves represent catastrophic or worst-case discharge rates; Data developed by pressurizing the outlet with the second check valve's internals removed; Maximum flow rate shown is 140 gpm (532 lpm) for 1-1/4" size. connectionSize: 1/4", 3/8", 1/2", 3/4", 1", 1-1/4"
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Ames Fire & Waterworks
- Catalog no.
- Ames Fire & Waterworks Relief Valve Discharge Rates
- Product type
- Plumbing
- MasterFormat
- 21

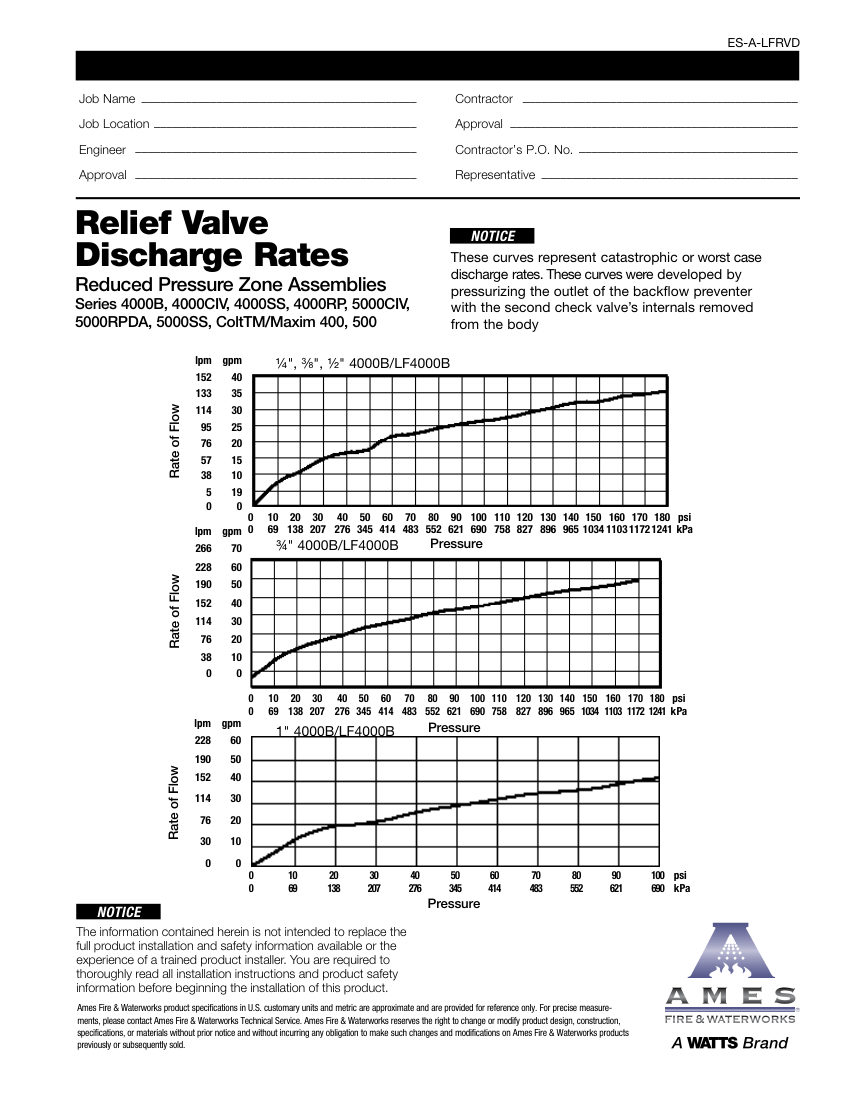

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | Ames Fire & Waterworks Relief Valve Discharge Rates |
|---|---|
| Description | Ames Fire & Waterworks Relief Valve Discharge Rate Data (Backflow Prevention). Model ES-A-LFRVD. Applies to Reduced Pressure Zone Assemblies Series 4000B, 4000CIV, 4000SS, 4000RP, 5000CIV, 5000RPDA, 5000SS, Colt/Maxim 400, 500; Curves represent catastrophic or worst-case discharge rates; Data developed by pressurizing the outlet with the second check valve's internals removed; Maximum flow rate shown is 140 gpm (532 lpm) for 1-1/4" size. connectionSize: 1/4", 3/8", 1/2", 3/4", 1", 1-1/4" |
| Pressure Rating | 0-180 psi (0-1241 kPa) |
| Flow Rate | Up to 140 gpm (532 lpm). |
