DIV 21 · FIRE SUPPRESSIONPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksAmes Fire & Waterworks TS-OSY Tamper Switch

Ames Fire & Waterworks Supervisory Tamper Switch (Fire Protection). Model TS-OSY. Indicates open or closed position of OS&Y gate valve; Consists of two SPDT switches; Activates signal when valve is closed or cover is removed; Factory installed and calibrated. material: Gray and ductile iron castings

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFAmes-Fire-Waterworks-TS-OSY-Tamper-Switch.pdfData sheet

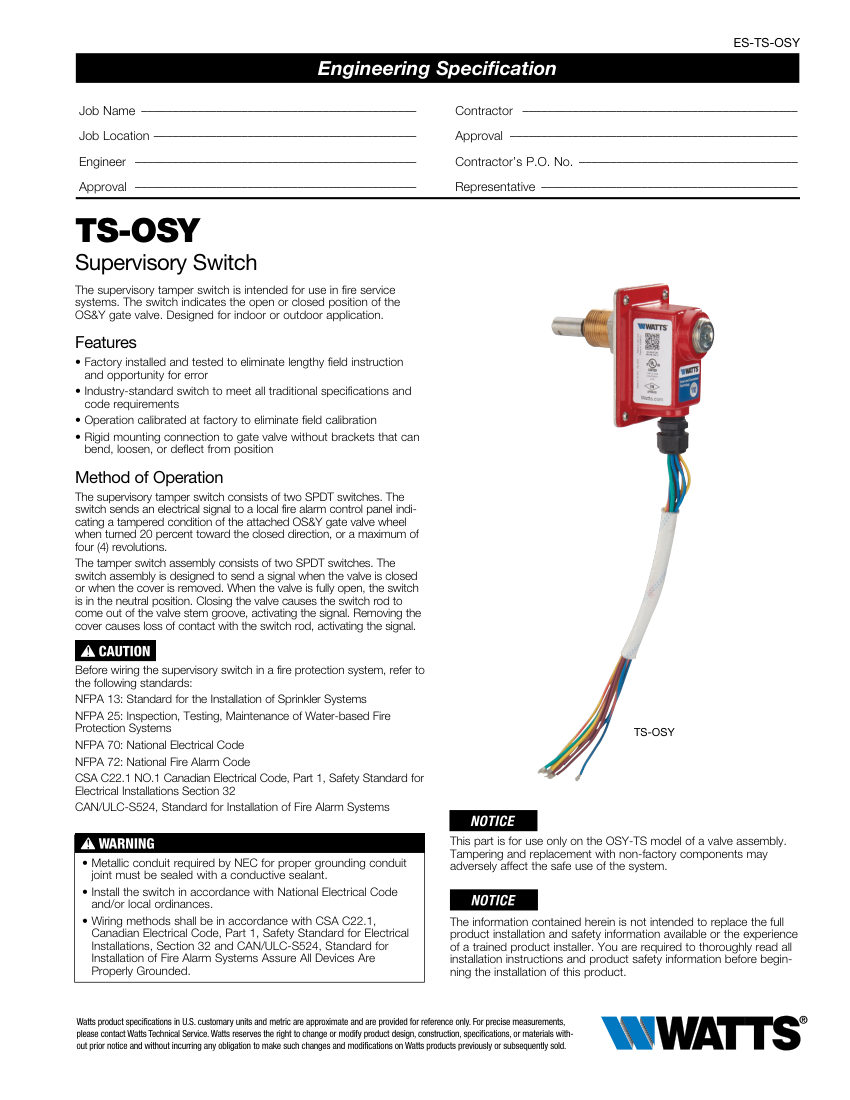

Ames Fire & Waterworks Ames Fire & Waterworks TS-OSY Tamper Switch cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
Ames Fire & Waterworks TS-OSY Tamper Switch
Product type
Plumbing
MasterFormat
21
Cut sheet
PDF · manufacturer current

Product details

Catalog numberAmes Fire & Waterworks TS-OSY Tamper Switch
DescriptionAmes Fire & Waterworks Supervisory Tamper Switch (Fire Protection). Model TS-OSY. Indicates open or closed position of OS&Y gate valve; Consists of two SPDT switches; Activates signal when valve is closed or cover is removed; Factory installed and calibrated. material: Gray and ductile iron castings
MountingRigid mounting connection to gate valve
ComplianceUL Certified (3L38), NEMA 4X, NEMA 6P, NFPA 13, NFPA 25, NFPA 70, NFPA 72, CSA C22.1, CAN/ULC-S524
Voltage120 VAC, 28 VDC.
