Ames Fire & WaterworksC200 (Spanish)C200-OSY

Ames Fire & Waterworks Double Check Valve Assembly (Backflow Prevention). Model C200/C200N. Consists of two independent check valves, two shutoff valves, and four test cocks; Designed for non-health hazard applications to prevent backflow of objectionable contaminants; Features triple-link check valves with reversible elastomer discs; OS&Y model includes optional integrated tamper-proof supervisory switch. material: Stainless Steel 304 (Schedule 40)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFC200-OSY.pdfData sheet

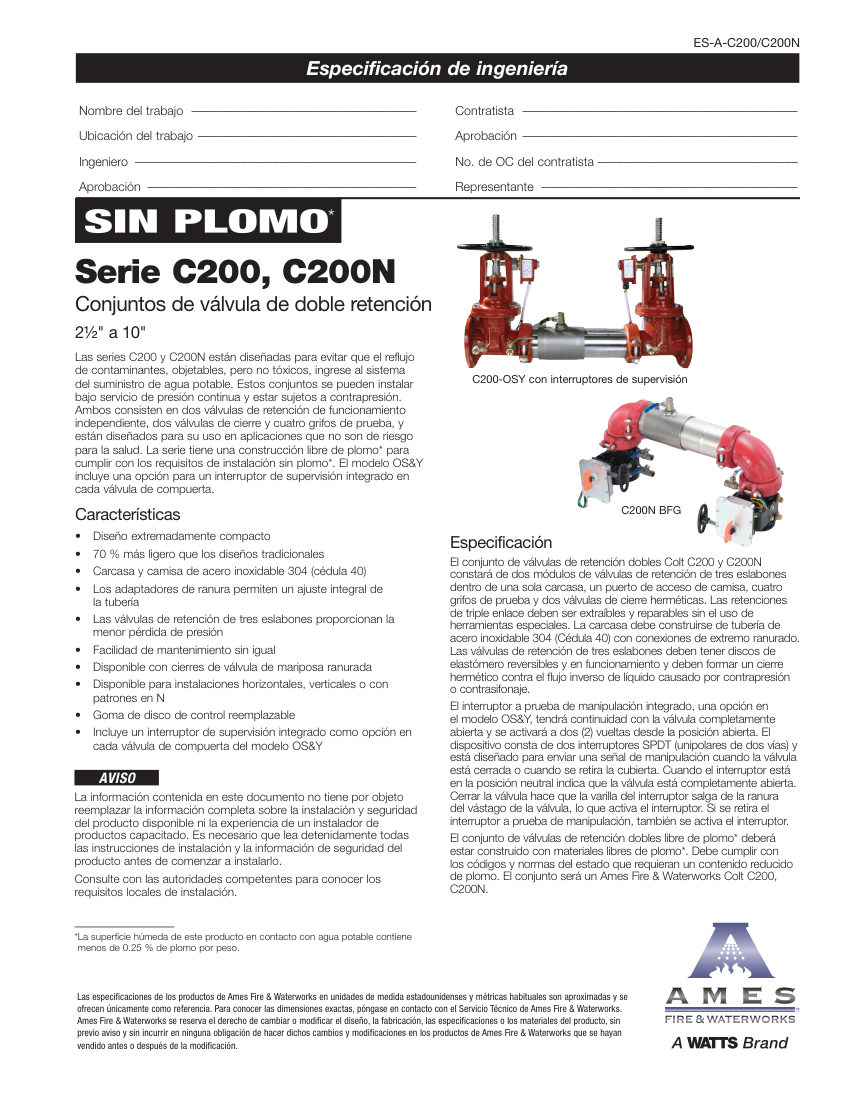

Ames Fire & Waterworks C200-OSY cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
C200-OSY
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberC200-OSY
DescriptionAmes Fire & Waterworks Double Check Valve Assembly (Backflow Prevention). Model C200/C200N. Consists of two independent check valves, two shutoff valves, and four test cocks; Designed for non-health hazard applications to prevent backflow of objectionable contaminants; Features triple-link check valves with reversible elastomer discs; OS&Y model includes optional integrated tamper-proof supervisory switch. material: Stainless Steel 304 (Schedule 40)
Connection size2.5" to 10"
End connectionGrooved
MountingHorizontal, Vertical, or N-pattern
ComplianceLead-free (<0.25% lead by weight).

Also cataloged as: C200N BFG
