DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksC500C500

Ames Fire & Waterworks Reduced Pressure Detector Assembly (Backflow Prevention). Model C500. Consists of two independent Link Check modules and a differential pressure relief valve; Includes flood sensor to detect excessive water discharges from the relief valve; OS&Y model includes option for integrated supervisory switch on each gate valve; 70% lighter than traditional designs with extremely compact housing. material: 304 (Schedule 40) stainless steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFC500.pdfData sheet

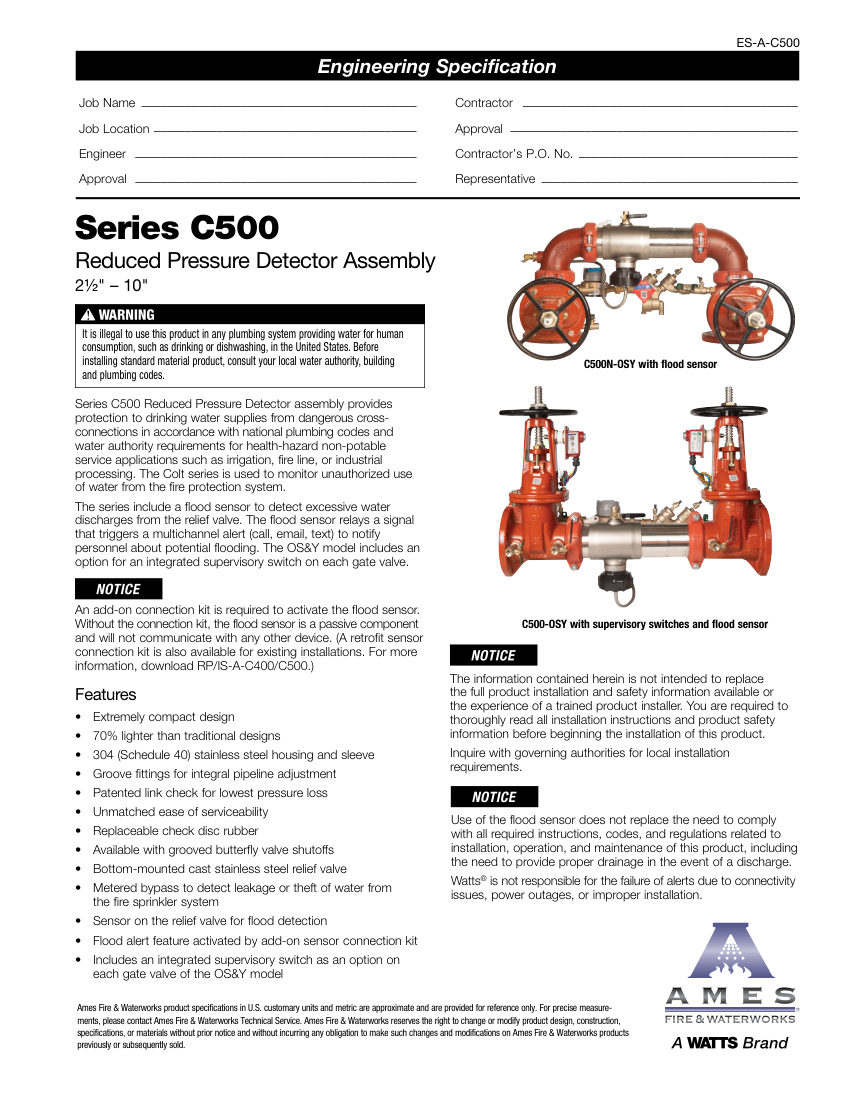

Ames Fire & Waterworks C500 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
C500
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberC500
DescriptionAmes Fire & Waterworks Reduced Pressure Detector Assembly (Backflow Prevention). Model C500. Consists of two independent Link Check modules and a differential pressure relief valve; Includes flood sensor to detect excessive water discharges from the relief valve; OS&Y model includes option for integrated supervisory switch on each gate valve; 70% lighter than traditional designs with extremely compact housing. material: 304 (Schedule 40) stainless steel
Connection size2½" – 10"
End connectionGroove
ComplianceAWWA C511-97, FCCCHR-USC.

Also cataloged as: C500N-OSY, C500-OSY, C500N, C500Z, C500NBFG, C500ZBFG, C500-N, C500-Z, C500-FS, C500-BFG, C500-TS-OSY, C500-OSY FxG, C500-OSY GXF, C500-OSY GXG
