Ames Fire & WaterworksAutomatic Control Valve CP15-1SSCP15-1SS

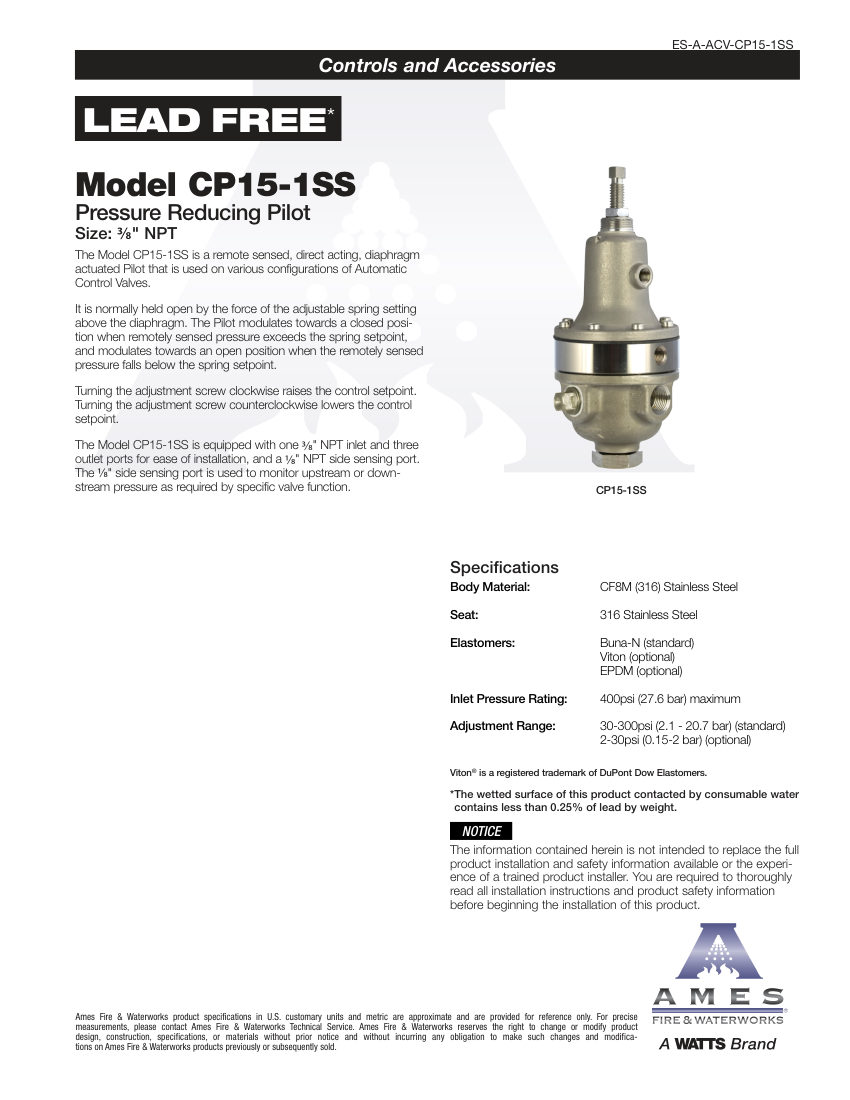

Name: Ames Fire & Waterworks Automatic Control Valve CP15-1SS
Brand: Ames Fire & Waterworks
SKU: CP15-1SS

Ames Fire & Waterworks Pressure Reducing Pilot (Controls and Accessories). Model CP15-1SS. Remote sensed, direct acting, diaphragm actuated pilot

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	CP15-1SS
Description	Ames Fire & Waterworks Pressure Reducing Pilot (Controls and Accessories). Model CP15-1SS. Remote sensed, direct acting, diaphragm actuated pilot
Adjustment Range	30-300psi (standard), 2-30psi (optional)
Elastomers	Buna-N (standard), Viton or EPDM (optional); Features one 3/8" NPT inlet and three outlet ports. material: CF8M (316) Stainless Steel
Connection size	3/8" NPT
End connection	NPT
Pressure Rating	400psi (27.6 bar) maximum
Compliance	Lead Free (<0.25% lead by weight).
