DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksDeringer 30Deringer 30

Ames Fire & Waterworks Double Check Detector Assembly (Backflow Prevention). Model Deringer 30. Prevents non-health hazard pollutants from entering potable water supply; Features patented Dual-action check modules (poppet at low flow, swing at high flow); Includes integral shutoff valves with prewired supervisory tamper switches; Bypass assembly includes meter registering gallons or cubic feet. material: 304 Stainless Steel housing, Lead Free Bronze bypass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFDeringer-30.pdfData sheet

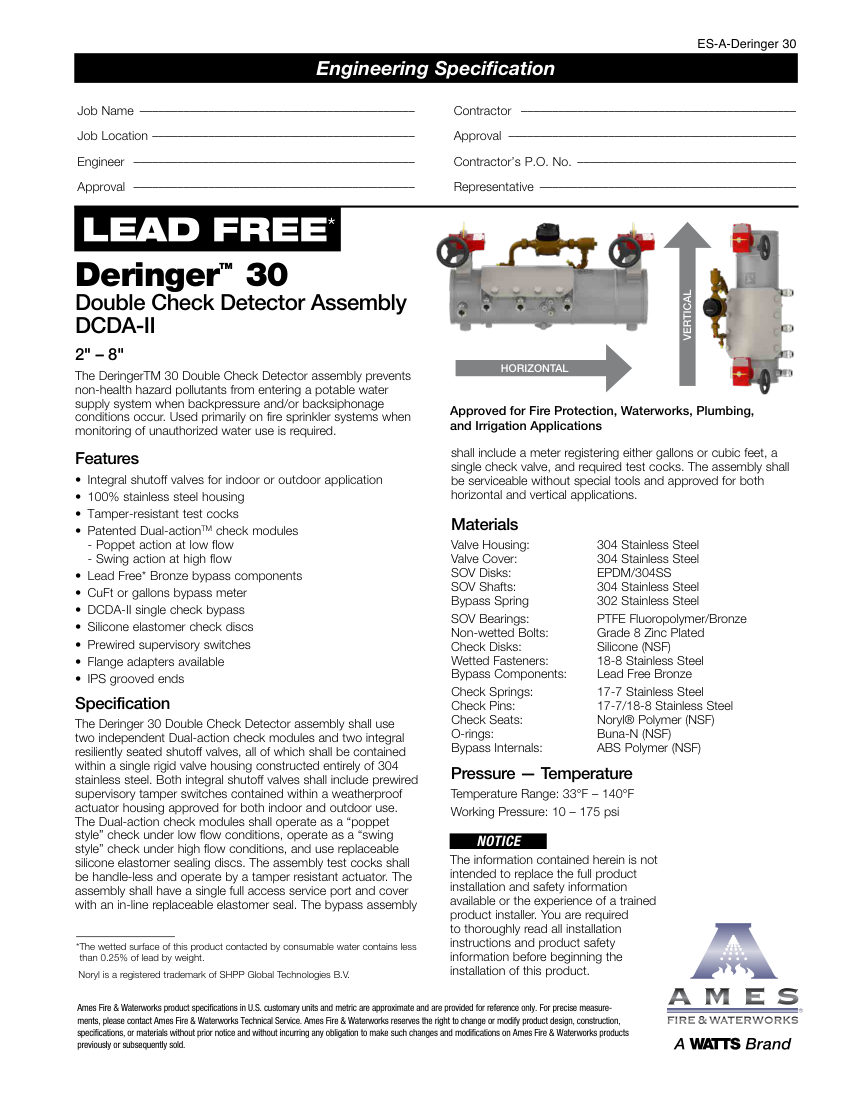

Ames Fire & Waterworks Deringer 30 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
Deringer 30
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberDeringer 30
DescriptionAmes Fire & Waterworks Double Check Detector Assembly (Backflow Prevention). Model Deringer 30. Prevents non-health hazard pollutants from entering potable water supply; Features patented Dual-action check modules (poppet at low flow, swing at high flow); Includes integral shutoff valves with prewired supervisory tamper switches; Bypass assembly includes meter registering gallons or cubic feet. material: 304 Stainless Steel housing, Lead Free Bronze bypass
Connection size2" – 8"
End connectionIPS grooved ends
Pressure Rating10 – 175 psi
MountingVertical or Horizontal
ComplianceNSF,

Also cataloged as: Deringer 30-2(21/2)**, Deringer 30-21/2, Deringer 30-3, Deringer 30-4, Deringer 30-6, Deringer 30-8
