Ames Fire & WaterworksDeringer 40GX - 6INDeringer 40X

Ames Fire & Waterworks Reduced Pressure Zone Assembly (Backflow Prevention). Model Deringer 40GX. Prevents backflow contamination in potable water systems; Constructed entirely of 304 stainless steel housing; Features dual-action check modules (poppet at low flow, swing at high flow); Includes integral shutoff valves with prewired supervisory switches. material: 304 Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFDeringer-40X.pdfData sheet

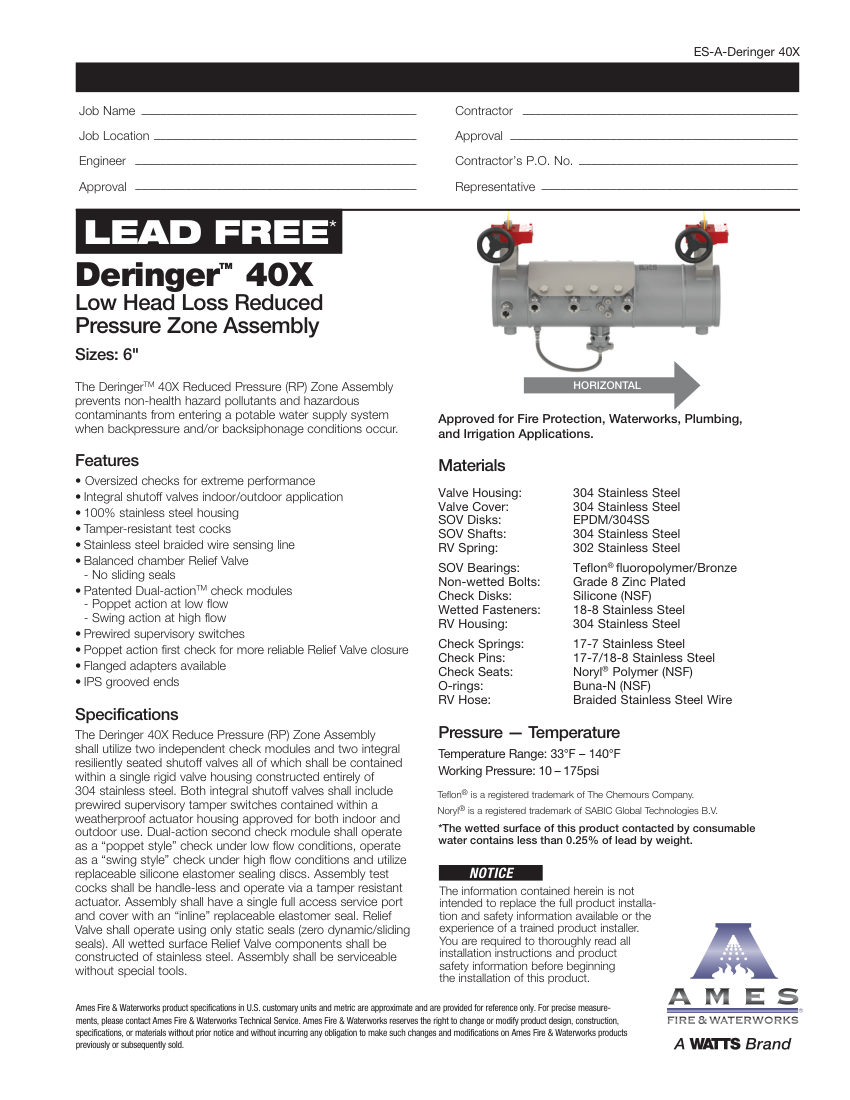

Ames Fire & Waterworks Deringer 40X cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
Deringer 40X
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberDeringer 40X
DescriptionAmes Fire & Waterworks Reduced Pressure Zone Assembly (Backflow Prevention). Model Deringer 40GX. Prevents backflow contamination in potable water systems; Constructed entirely of 304 stainless steel housing; Features dual-action check modules (poppet at low flow, swing at high flow); Includes integral shutoff valves with prewired supervisory switches. material: 304 Stainless Steel
Connection size6"
End connectionIPS grooved ends
Pressure Rating10 – 175psi
MountingHorizontal
ComplianceLead Free (<0.25% lead), NSF.
