Ames Fire & WaterworksGate Valve TS-OSYES-A-GateValve-TS-OSY-2 1/2

Ames Fire & Waterworks Gate Valve (Fire Protection Valves). Model TS-OSY. Includes integrated supervisory switch for tamper/shutoff signaling; Resilient wedge fully encapsulated with EPDM rubber; Lead-free construction (<0.25% lead by weight); Bubble tight at 250 psi. material: Ductile iron (ASTM A536), Bronze stem, EPDM rubber wedge

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFES-A-GateValve-TS-OSY-2-1-2.pdfData sheet

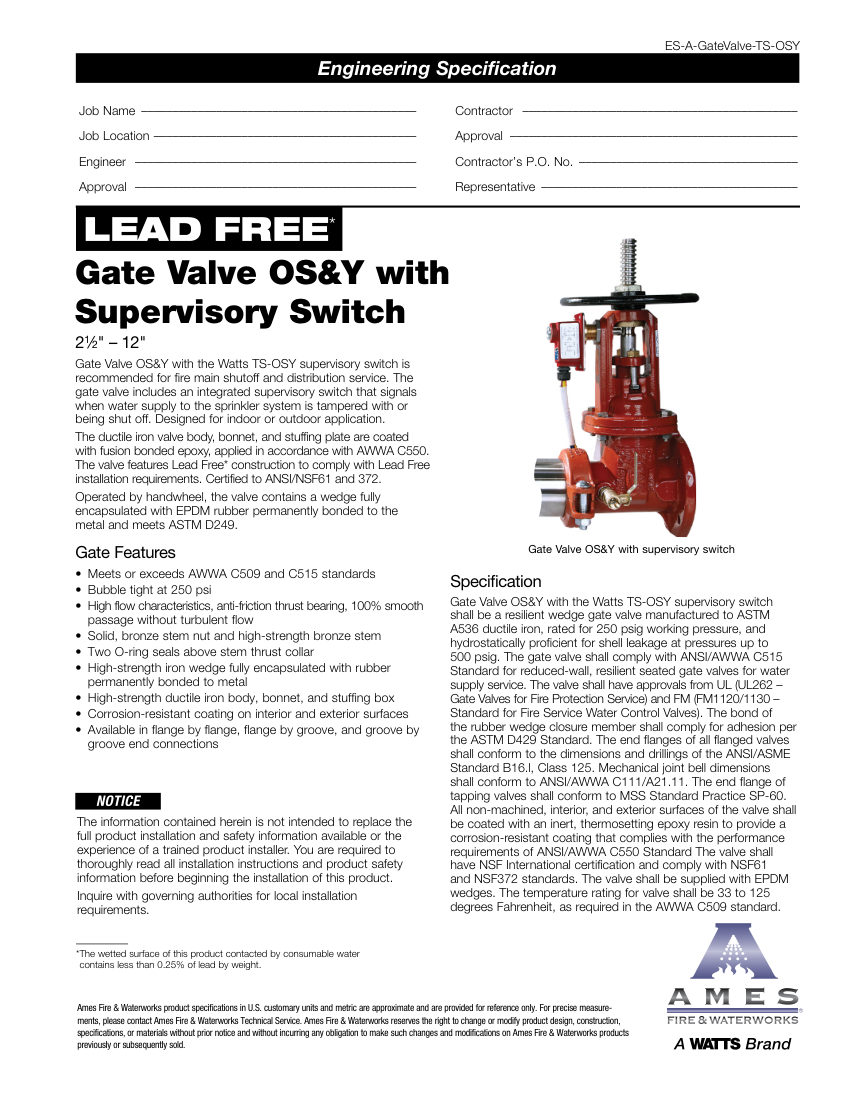

Ames Fire & Waterworks ES-A-GateValve-TS-OSY-2 1/2 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
ES-A-GateValve-TS-OSY-2 1/2
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberES-A-GateValve-TS-OSY-2 1/2
DescriptionAmes Fire & Waterworks Gate Valve (Fire Protection Valves). Model TS-OSY. Includes integrated supervisory switch for tamper/shutoff signaling; Resilient wedge fully encapsulated with EPDM rubber; Lead-free construction (<0.25% lead by weight); Bubble tight at 250 psi. material: Ductile iron (ASTM A536), Bronze stem, EPDM rubber wedge
Connection size2.5" - 12"
End connectionFlange by flange, flange by groove, groove by groove
Pressure Rating250 psig working, 500 psig hydrostatic
FinishFusion bonded epoxy (AWWA C550)
MountingOS&Y (Outside Screw and Yoke).

Also cataloged as: ES-A-GateValve-TS-OSY-3, ES-A-GateValve-TS-OSY-4, ES-A-GateValve-TS-OSY-6, ES-A-GateValve-TS-OSY-8, ES-A-GateValve-TS-OSY-10, ES-A-GateValve-TS-OSY-12
