Ames Fire & WaterworksIn-Building Riser IBR2IBR2
Ames Fire & Waterworks In-Building Riser (Fire Protection). Model IBR2. Single extended 90-degree fitting; Corrosion resistant Type 304 stainless steel construction; Lead Free wetted surface (<0.25% lead by weight); Factory tested integrity. material: Type 304 Stainless Steel
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Ames Fire & Waterworks
- Catalog no.
- IBR2
- Product type
- Plumbing
- MasterFormat
- 21

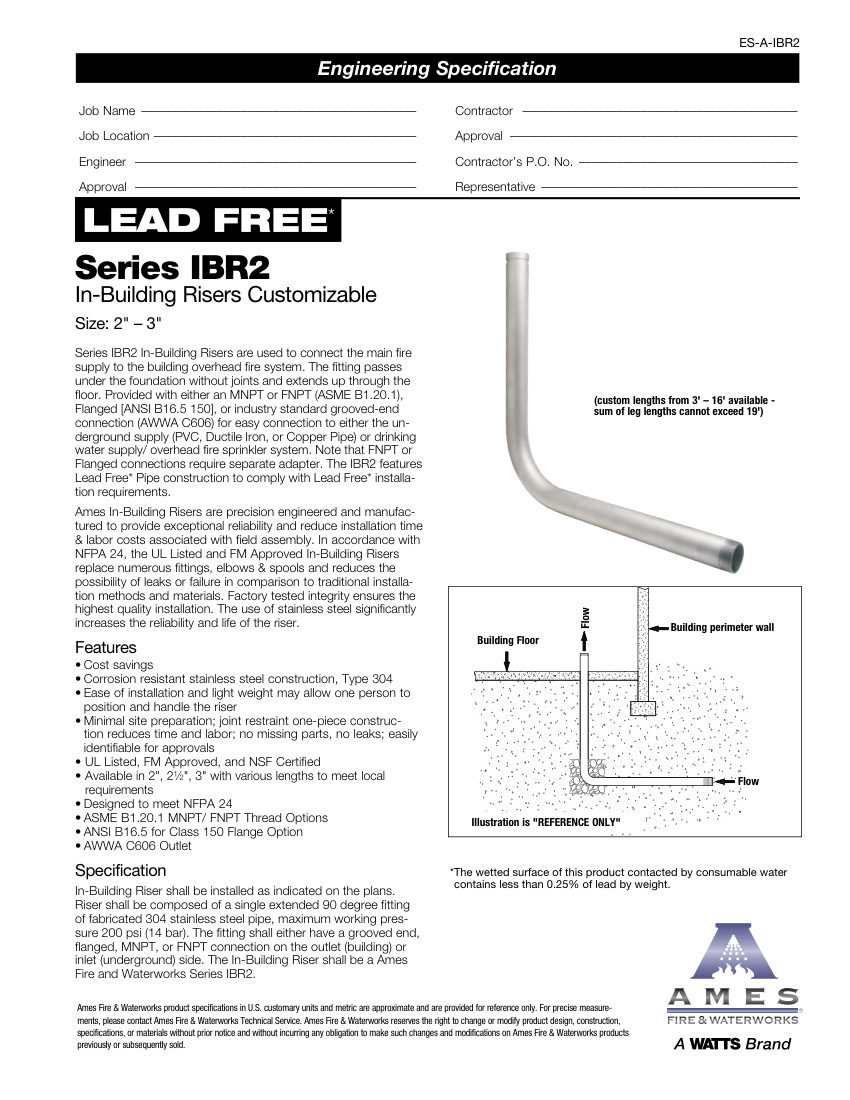

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | IBR2 |
|---|---|
| Description | Ames Fire & Waterworks In-Building Riser (Fire Protection). Model IBR2. Single extended 90-degree fitting; Corrosion resistant Type 304 stainless steel construction; Lead Free wetted surface (<0.25% lead by weight); Factory tested integrity. material: Type 304 Stainless Steel |
| Connection size | 2", 2-1/2", 3" |
| End connection | MNPT, FNPT, Flanged (ANSI B16.5 150), Grooved (AWWA C606) |
| Pressure Rating | 200 psi (14 bar) |
| Mounting | Vertical/Horizontal |
| Dimensions | Custom lengths 3' - 16' (sum of leg lengths max 19'). |
Also cataloged as: IBR2-2, IBR2-2 1/2, IBR2-3, IBR2-GRVXMNPT, IBR2-GRVXGRV, IBR2-MNPTXMNPT
