Ames Fire & WaterworksLF2000B-FPLF2000
Ames Fire & Waterworks Double Check Valve Assembly (Backflow Prevention). Model LF2000B-FP. Sizes 1" to 2"; Maximum Working Pressure 175 psi; Temperature Range 33°F – 140°F; Includes two gear-operated slow close shutoffs and four test cocks. material: Lead Free cast copper silicon alloy
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Ames Fire & Waterworks
- Catalog no.
- LF2000
- Product type
- Plumbing
- MasterFormat
- 21

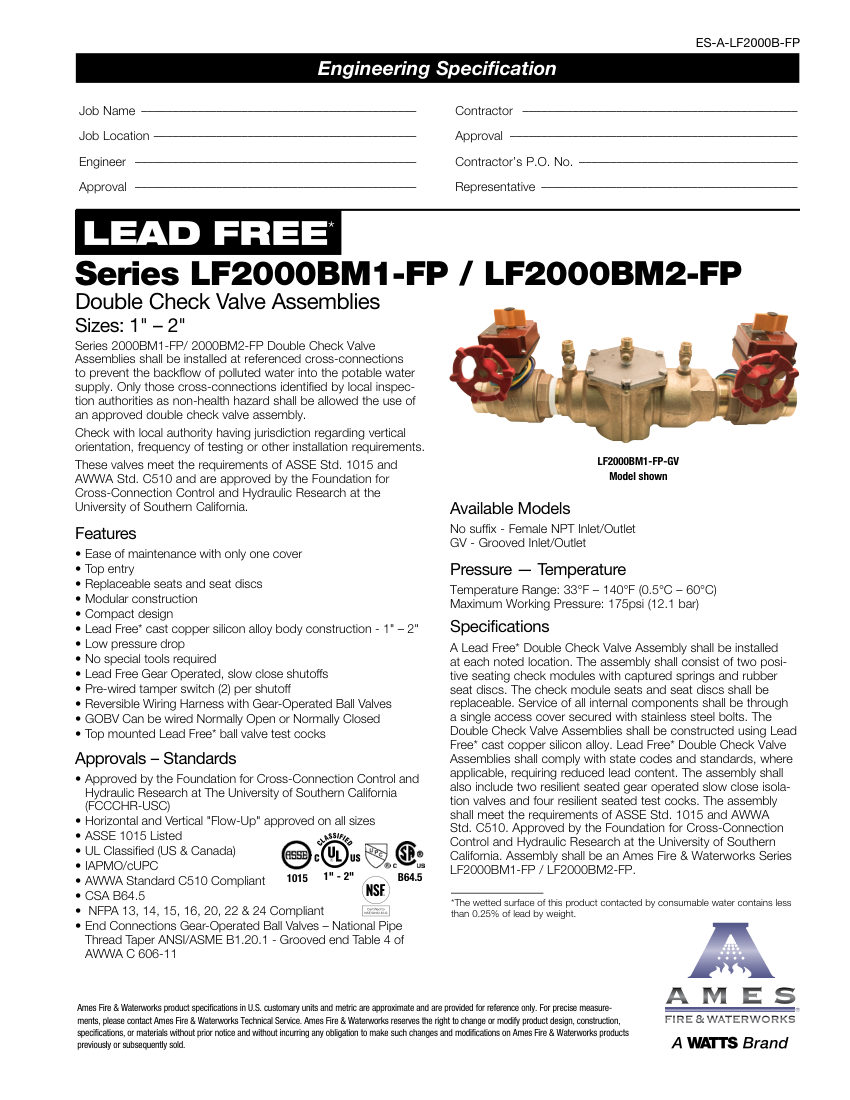

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | LF2000 |
|---|---|
| Description | Ames Fire & Waterworks Double Check Valve Assembly (Backflow Prevention). Model LF2000B-FP. Sizes 1" to 2"; Maximum Working Pressure 175 psi; Temperature Range 33°F – 140°F; Includes two gear-operated slow close shutoffs and four test cocks. material: Lead Free cast copper silicon alloy |
| Connection size | 1" – 2" |
| End connection | Female NPT Inlet/Outlet or Grooved Inlet/Outlet |
| Pressure Rating | 175psi (12.1 bar) |
| Mounting | Horizontal and Vertical Flow-Up |
| Compliance | ASSE 1015, AWWA C510, UL, IAPMO/cUPC, CSA B64.5, NFPA 13, 14, 15, 16, 20, 22 & 24. |
Also cataloged as: LF2000BM1-FP, LF2000BM2-FP, LF2000BM1-FP-GV, LF2000-BM1-FP, LF2000-BM2-FP, LF2000-GV
