DIV 21 · FIRE SUPPRESSIONPLUMBINGCUT SHEET INDEXED

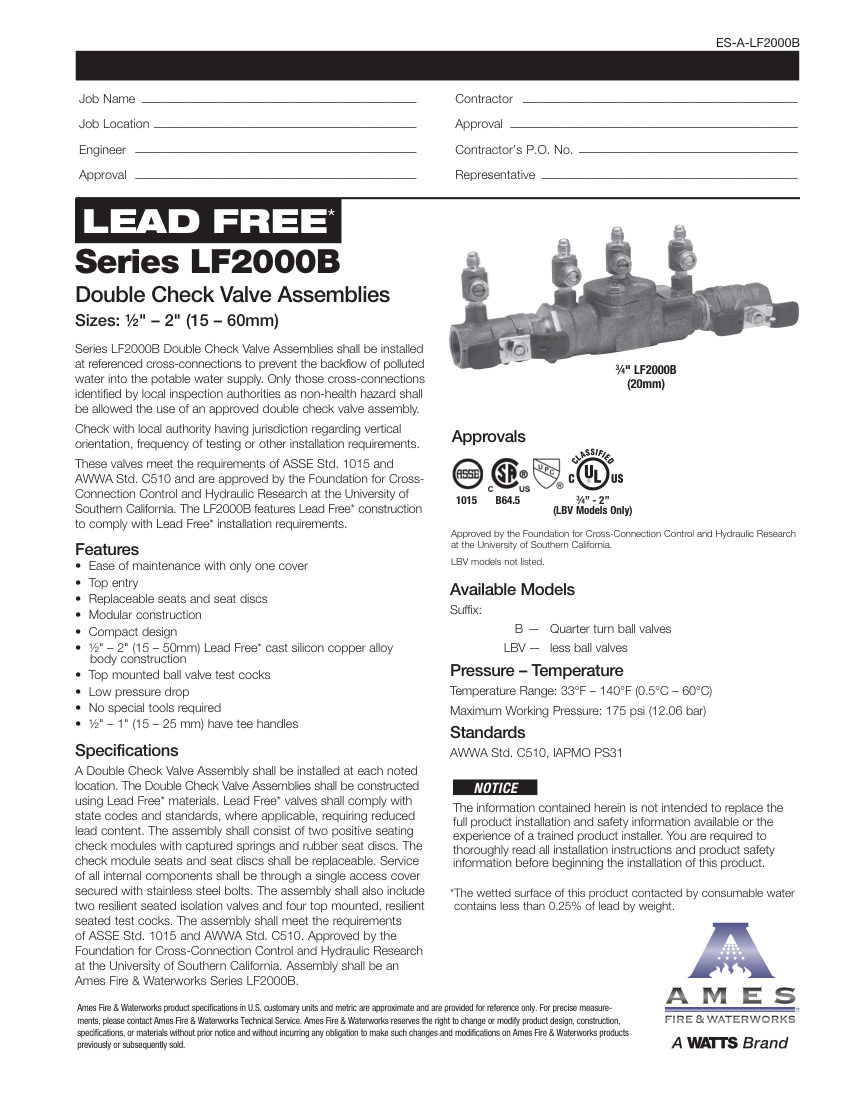

Ames Fire & WaterworksLF2000BLF2000B

Name: Ames Fire & Waterworks LF2000B
Brand: Ames Fire & Waterworks
SKU: LF2000B

Ames Fire & Waterworks Double Check Valve Assembly (Double Check Valve Assemblies). Model LF2000B. Sizes: 1/2" – 2" (15 – 60mm)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	LF2000B
Description	Ames Fire & Waterworks Double Check Valve Assembly (Double Check Valve Assemblies). Model LF2000B. Sizes: 1/2" – 2" (15 – 60mm)
Maximum Working Pressure	175 psi (12.06 bar)
Temperature Range	33°F – 140°F (0.5°C – 60°C); Lead Free construction (wetted surface < 0.25% lead). material: Lead Free cast silicon copper alloy
Connection size	1/2" – 2" (15 – 60mm)
Pressure Rating	175 psi (12.06 bar)
Mounting	Top entry
Compliance	ASSE Std. 1015, AWWA Std. C510, IAPMO PS31.

Also cataloged as: 3/4" LF2000B (20mm), LF2000B/B, LF2000B/LBV
