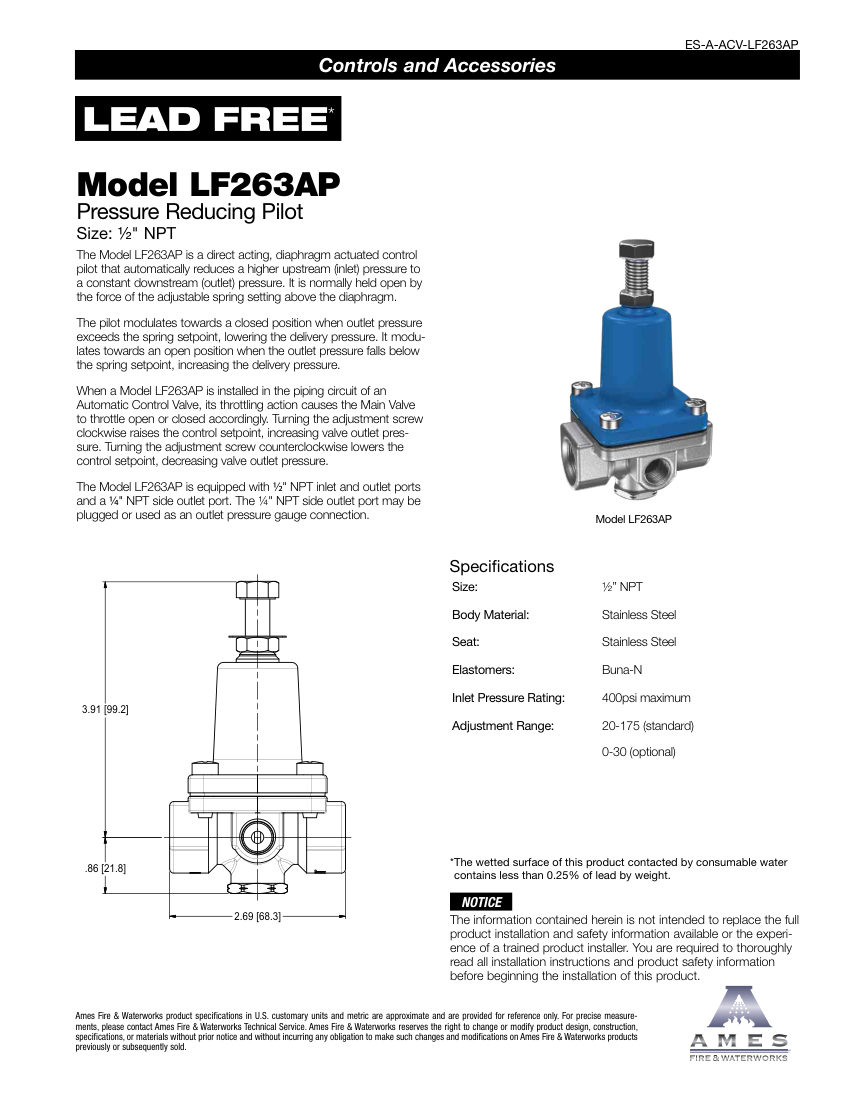

Ames Fire & WaterworksAutomatic Control Valve LF263APLF263AP

Name: Ames Fire & Waterworks Automatic Control Valve LF263AP
Brand: Ames Fire & Waterworks
SKU: LF263AP

Ames Fire & Waterworks Pressure Reducing Pilot (Controls and Accessories). Model LF263AP. Direct acting, diaphragm actuated control pilot

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	LF263AP
Description	Ames Fire & Waterworks Pressure Reducing Pilot (Controls and Accessories). Model LF263AP. Direct acting, diaphragm actuated control pilot
Adjustment Range	20-175 psi (standard), 0-30 psi (optional)
Body and Seat Material	Stainless Steel
Elastomers	Buna-N. material: Stainless Steel
Connection size	1/2" NPT
End connection	NPT
Pressure Rating	400psi maximum
Dimensions	3.91 x 2.69 x 0.86 in [99.2 x 68.3 x 21.8 mm]
Compliance	Less than 0.25% lead by weight.
