DIV 21 · FIRE SUPPRESSIONPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksLF4000B-FPLF4000BM2-FP

Ames Fire & Waterworks Reduced Pressure Zone Assembly (Reduced Pressure Zone Assemblies). Model LF4000B-FP. Lead free wetted surfaces (<0.25% lead); Two in-line independent check valves with captured springs; Internal pressure differential relief valve; Gear operated slow close resilient seated isolation valves. material: Lead free bronze body, silicone rubber disc, polymer check seats

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLF4000BM2-FP.pdfData sheet

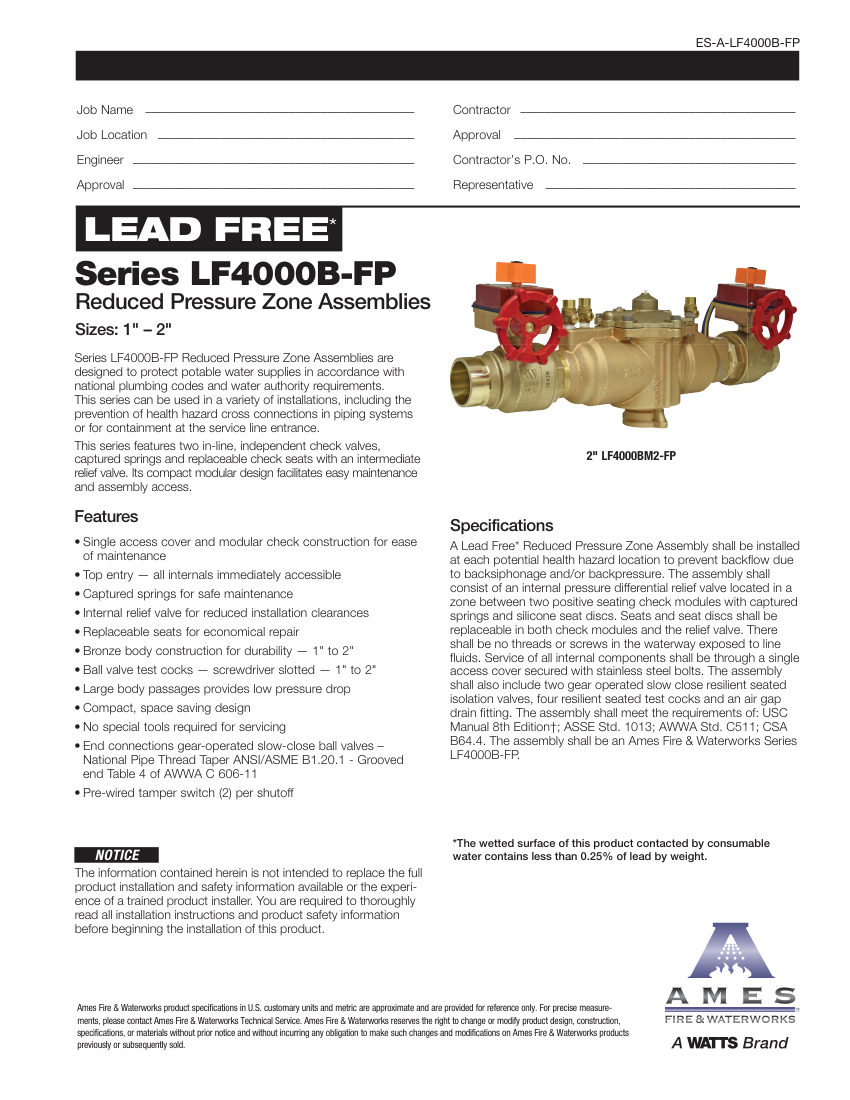

Ames Fire & Waterworks LF4000BM2-FP cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
LF4000BM2-FP
Product type
Plumbing
MasterFormat
21
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLF4000BM2-FP
DescriptionAmes Fire & Waterworks Reduced Pressure Zone Assembly (Reduced Pressure Zone Assemblies). Model LF4000B-FP. Lead free wetted surfaces (<0.25% lead); Two in-line independent check valves with captured springs; Internal pressure differential relief valve; Gear operated slow close resilient seated isolation valves. material: Lead free bronze body, silicone rubber disc, polymer check seats
Connection size1" – 2"
End connectionNPT or Grooved
Pressure Rating175 psi (12.06 bar)
ComplianceUSC Manual 8th Edition, ASSE Std. 1013, AWWA Std. C511, CSA B64.4, IAPMO File No. 1563.

Also cataloged as: 1 LF4000BM2-FP, 11/4 LF4000BM2-FP, 11/2 LF4000BM2-FP, 2 LF4000BM2-FP, LF4000BM2-FP-1, LF4000BM2-FP-11/4, LF4000BM2-FP-11/2, LF4000BM2-FP-2
