DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksAutomatic Control Valve 50LF50

Ames Fire & Waterworks Position Indicator (Control Valve Accessories). Model Model 50 / LF50. Visual indication of valve position; Includes screw driver operated test cock for air removal; Stainless steel indicating rod moves inside Pyrex sight tube; Housing allows visibility on two sides. material: Stainless Steel Housing & Body, Stainless Steel Indicating Rod, Pyrex Sight Tube

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLF50.pdfData sheet

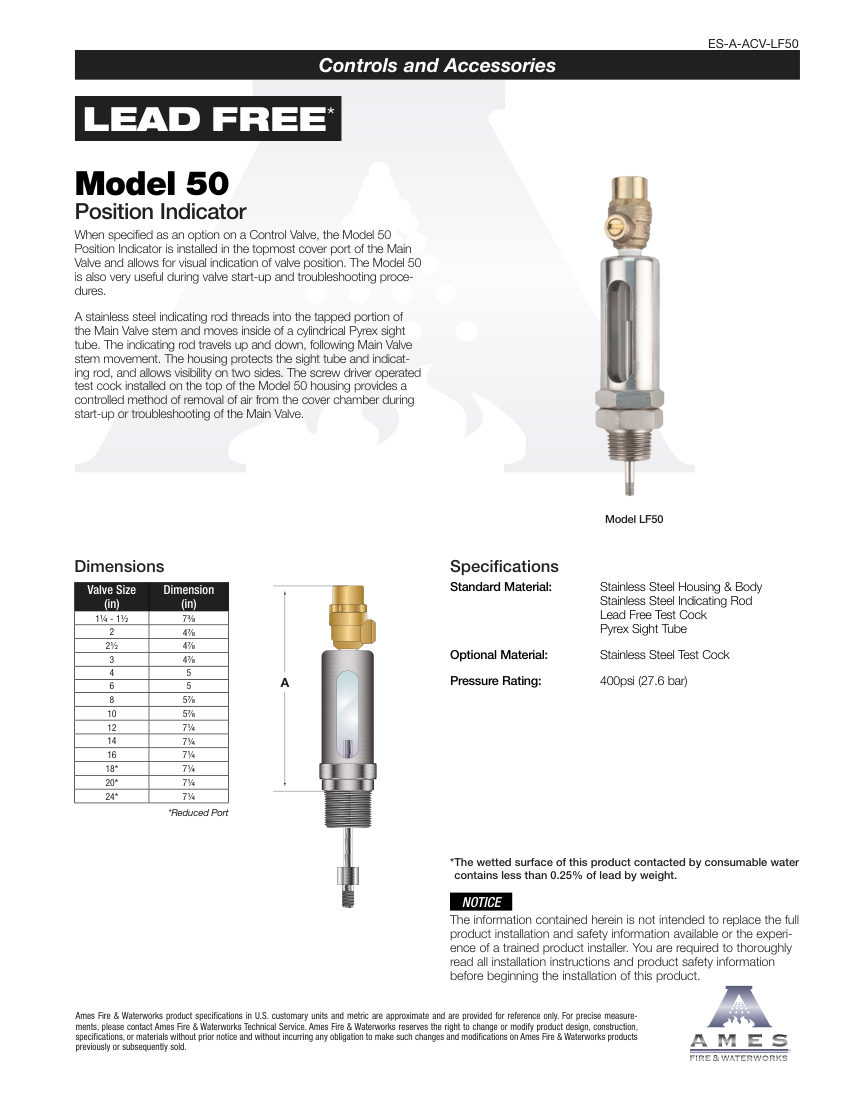

Ames Fire & Waterworks LF50 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
LF50
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLF50
DescriptionAmes Fire & Waterworks Position Indicator (Control Valve Accessories). Model Model 50 / LF50. Visual indication of valve position; Includes screw driver operated test cock for air removal; Stainless steel indicating rod moves inside Pyrex sight tube; Housing allows visibility on two sides. material: Stainless Steel Housing & Body, Stainless Steel Indicating Rod, Pyrex Sight Tube
Connection size1-1/4" to 24"
End connectionThreads into tapped portion of Main Valve stem
Pressure Rating400psi (27.6 bar)
MountingTopmost cover port of Main Valve
Dimensions7-3/8" to 7-1/4" (varies by valv
