Ames Fire & WaterworksAmes Fire & WaterworksLF51
Ames Fire & Waterworks Single Limit Switch (Controls and Accessories). Model ACV-LF51. Form C SPDT Micro-Switch; 15 amp rating at 125/250/480 VAC; NEMA 1, 3, 4, 13 General Purpose enclosure (standard); NEMA 1, 7, 9 Explosion Proof enclosure (optional). material: Stainless Steel
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Ames Fire & Waterworks
- Catalog no.
- LF51
- Product type
- Plumbing
- MasterFormat
- 22

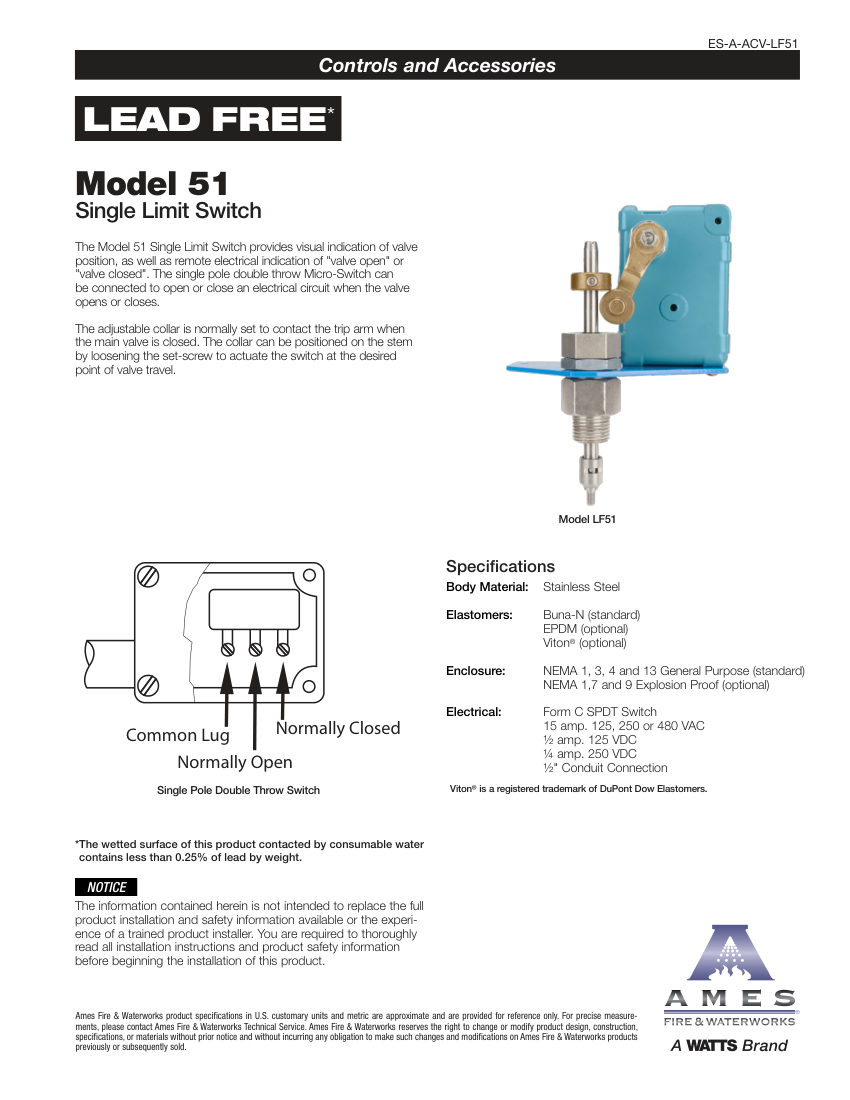

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | LF51 |
|---|---|
| Description | Ames Fire & Waterworks Single Limit Switch (Controls and Accessories). Model ACV-LF51. Form C SPDT Micro-Switch; 15 amp rating at 125/250/480 VAC; NEMA 1, 3, 4, 13 General Purpose enclosure (standard); NEMA 1, 7, 9 Explosion Proof enclosure (optional). material: Stainless Steel |
| End connection | 1/2" Conduit Connection |
| Compliance | Lead Free (<0.25% lead by weight) |
| Voltage | 125, 250, 480 VAC; 125, 250 VDC. |
