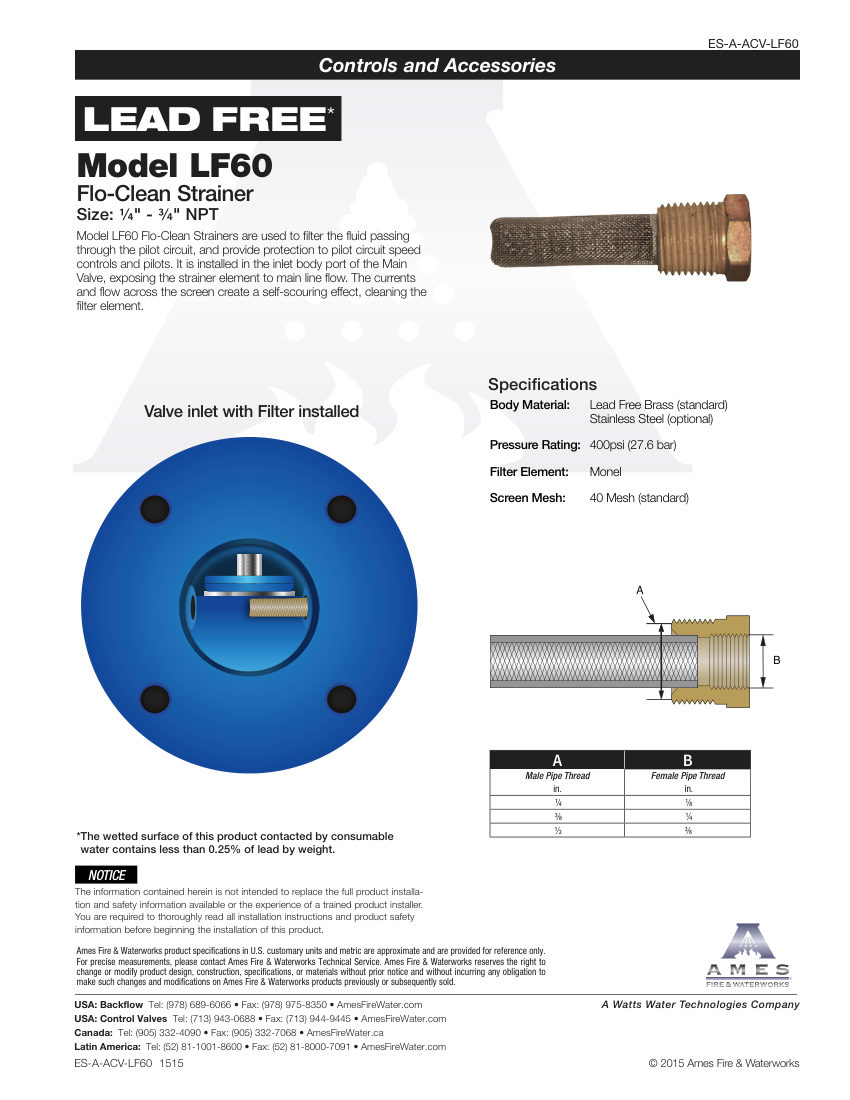

Ames Fire & WaterworksAutomatic Control Valve LF60LF60

Name: Ames Fire & Waterworks Automatic Control Valve LF60
Brand: Ames Fire & Waterworks
SKU: LF60

Ames Fire & Waterworks Flo-Clean Strainer (Controls and Accessories). Model LF60. Filter Element: Monel

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	LF60
Description	Ames Fire & Waterworks Flo-Clean Strainer (Controls and Accessories). Model LF60. Filter Element: Monel
Screen Mesh	40 Mesh (standard); Used to filter fluid in pilot circuit; Provides protection to pilot circuit speed controls and pilots. material: Lead Free Brass (standard), Stainless Steel (optional)
Connection size	1/4" - 3/4" NPT
End connection	Male Pipe Thread / Female Pipe Thread
Pressure Rating	400psi (27.6 bar)
Compliance	Lead Free (<0.25% lead by weight).
