Ames Fire & WaterworksAutomatic Control Valve LF60-1LF60-1

Ames Fire & Waterworks Y-Pattern Strainer (Controls and Accessories). Model LF60-1. Body Material: Lead Free Copper Silicon Alloy or CF8M (316) Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLF60-1.pdfData sheet

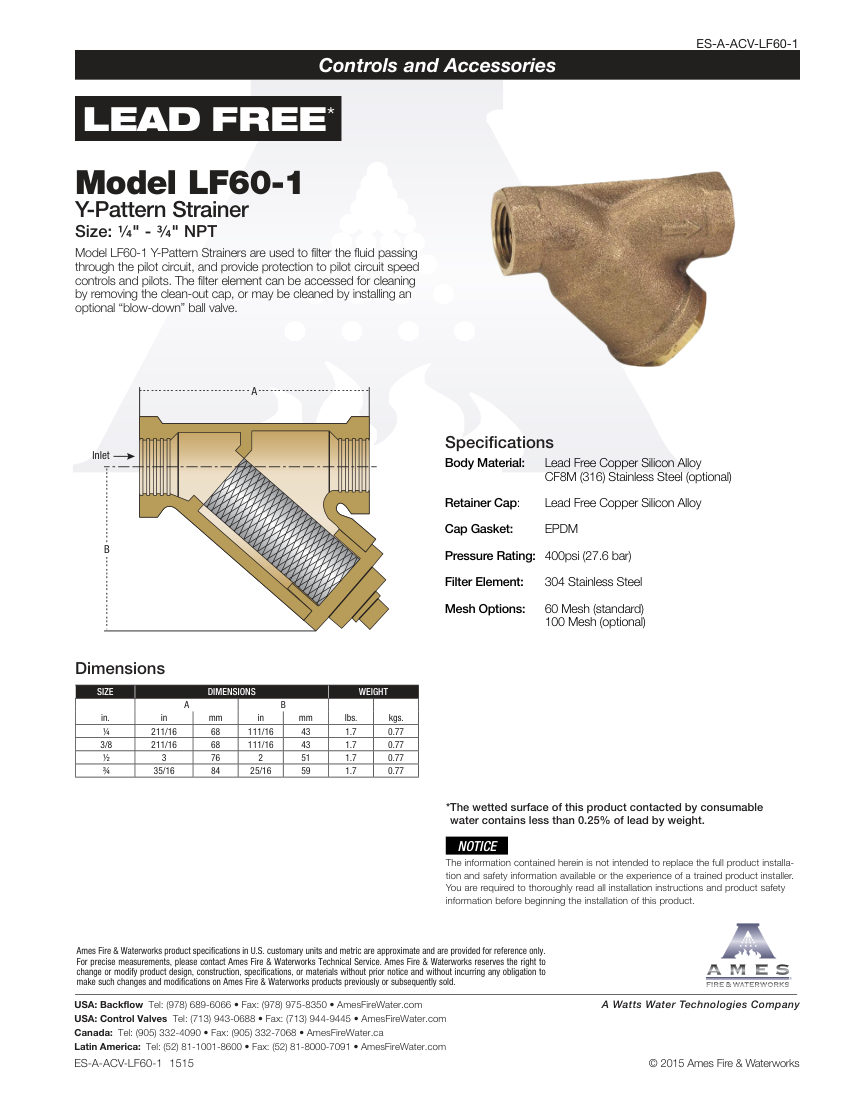

Ames Fire & Waterworks LF60-1 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
LF60-1
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLF60-1
DescriptionAmes Fire & Waterworks Y-Pattern Strainer (Controls and Accessories). Model LF60-1. Body Material: Lead Free Copper Silicon Alloy or CF8M (316) Stainless Steel
Filter Element304 Stainless Steel
Mesh Options60 Mesh (standard), 100 Mesh (optional)
Pressure Rating400 psi (27.6 bar). material: Lead Free Copper Silicon Alloy, CF8M (316) Stainless Steel (optional)
Connection size1/4" - 3/4" NPT
End connectionNPT
Pressure Rating400psi (27.6 bar)
DimensionsA: 2 11/16" - 3 5/16" (68-84 mm), B: 1 11/16" - 2 5/16" (43-59 mm)
ComplianceLead Free (<0.25% lead by weight).
