Ames Fire & Waterworks Pressure Reducing Control Valve with Low Flow By-Pass (Pressure Reducing Control Valve). Model LF910GD-48. Full Port Ductile Iron Single Chamber Valve; Throttles to reduce high upstream pressure to constant lower downstream pressure; Low Flow By-Pass controls at low flows; Main Line valve controls at high flows. material: Ductile Iron

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLF910GD-48.pdfData sheet

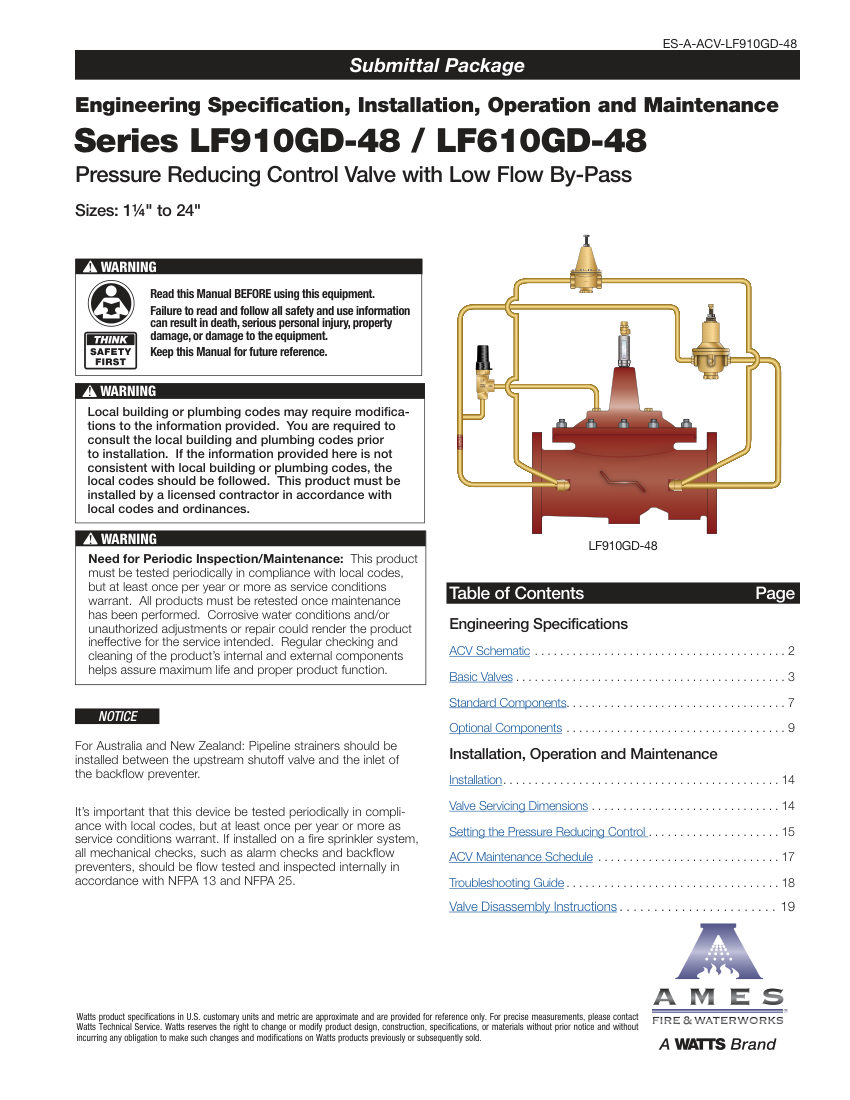

Ames Fire & Waterworks LF910GD-48 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
LF910GD-48
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLF910GD-48
DescriptionAmes Fire & Waterworks Pressure Reducing Control Valve with Low Flow By-Pass (Pressure Reducing Control Valve). Model LF910GD-48. Full Port Ductile Iron Single Chamber Valve; Throttles to reduce high upstream pressure to constant lower downstream pressure; Low Flow By-Pass controls at low flows; Main Line valve controls at high flows. material: Ductile Iron
Connection size1 1/4" to 24"
ComplianceLead Free.
