Ames Fire & WaterworksLFC300 (Spanish)LFC300

Ames Fire & Waterworks Double Check Detector Assembly (Double Check Detector Assemblies). Model LFC300 / LFC300N. Consists of two independent triple-link check modules in a single housing; Designed to prevent backflow of objectionable but non-toxic contaminants; Features 70% lighter weight than traditional designs; Available with integrated supervisory switch option on OS&Y gate valves. material: 304 Stainless Steel (Schedule 40)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLFC300.pdfData sheet

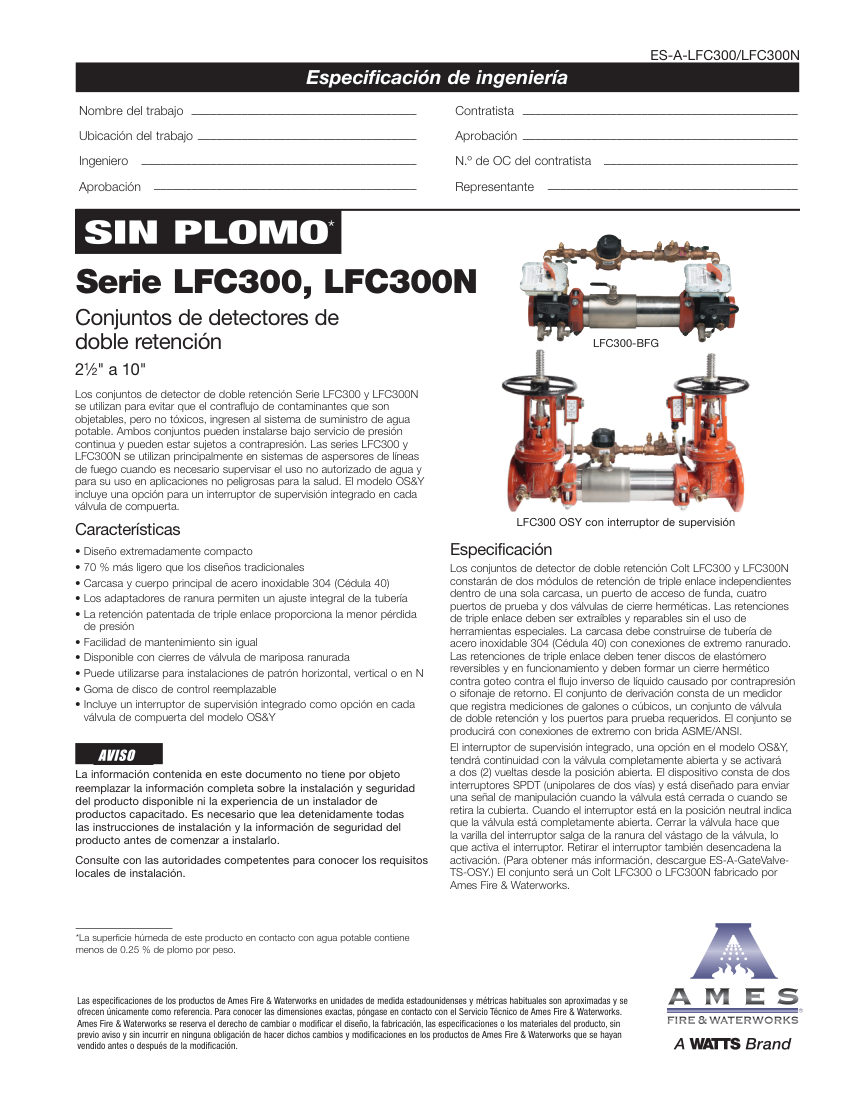

Ames Fire & Waterworks LFC300 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
LFC300
Product type
Plumbing
MasterFormat
21
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLFC300
DescriptionAmes Fire & Waterworks Double Check Detector Assembly (Double Check Detector Assemblies). Model LFC300 / LFC300N. Consists of two independent triple-link check modules in a single housing; Designed to prevent backflow of objectionable but non-toxic contaminants; Features 70% lighter weight than traditional designs; Available with integrated supervisory switch option on OS&Y gate valves. material: 304 Stainless Steel (Schedule 40)
Connection size2.5" to 10"
End connectionGrooved / ASME/ANSI Flanged
MountingHorizontal, Vertical, or N-pattern
ComplianceLead content < 0.25% by weight.

Also cataloged as: LFC300-BFG, LFC300 OSY, LFC300-N, LFC300-OSY, LFC300-TS-OSY, LFC300-OSYFxG, LFC300-OSYGxF, LFC300-OSYGxG, LFC300-2 1/2, LFC300-3, LFC300-4, LFC300-OSY FxG**, LFC300-OSY GxF**, LFC300-OSY GxG**, LFC300-OSY FxG, LFC300-OSY GXF, LFC300-OSY GXG
