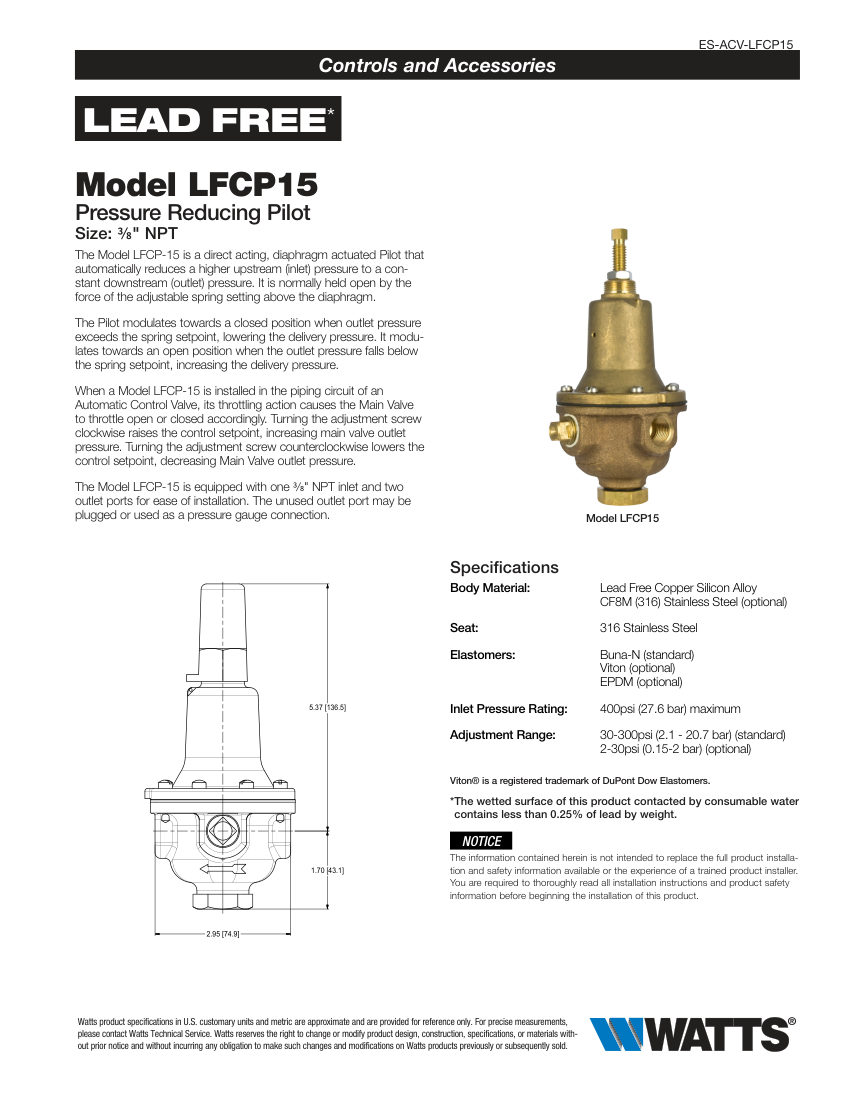

Ames Fire & WaterworksAutomatic Control Valve LFCP15LFCP15

Name: Ames Fire & Waterworks Automatic Control Valve LFCP15
Brand: Ames Fire & Waterworks
SKU: LFCP15

Ames Fire & Waterworks Pressure Reducing Pilot (Controls and Accessories). Model LFCP15. Direct acting, diaphragm actuated pilot

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	LFCP15
Description	Ames Fire & Waterworks Pressure Reducing Pilot (Controls and Accessories). Model LFCP15. Direct acting, diaphragm actuated pilot
Adjustment Range	30-300psi (standard), 2-30psi (optional)
Elastomers	Buna-N (standard), Viton or EPDM (optional); Includes one 3/8" NPT inlet and two outlet ports. material: Lead Free Copper Silicon Alloy (Body), 316 Stainless Steel (Seat)
Connection size	3/8" NPT
End connection	NPT
Pressure Rating	400psi (27.6 bar) maximum
Dimensions	5.37" x 2.95" x 1.70" [136.5 x 74.9 x 43.1 mm]
Compliance	Lead Free (<0.25% lead by weight).
