Ames Fire & WaterworksLFM300LFM300BFG

Ames Fire & Waterworks Double Check Detector Assembly (Backflow Prevention). Model LFM300 / LFM300N. Prevents backflow of objectionable but non-toxic pollutants; Features two independent Tri-Link Check modules; Includes four test cocks and two drip tight shutoff valves; 70% lighter than traditional designs. material: 304 (Schedule 40) Stainless Steel Housing & Sleeve, EPDM/Silicone/Buna 'N' Elastomers, Noryl® Tri-Link Checks

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLFM300BFG.pdfData sheet

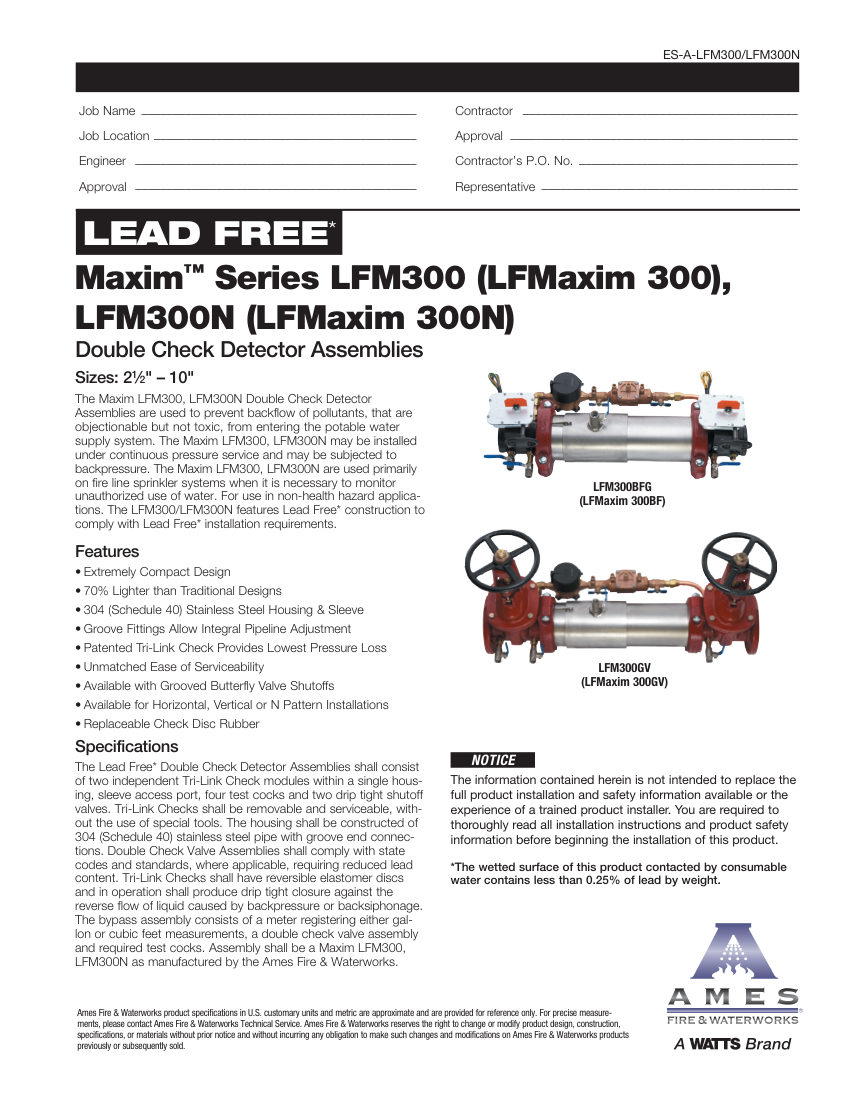

Ames Fire & Waterworks LFM300BFG cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
LFM300BFG
Product type
Plumbing
MasterFormat
21
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLFM300BFG
DescriptionAmes Fire & Waterworks Double Check Detector Assembly (Backflow Prevention). Model LFM300 / LFM300N. Prevents backflow of objectionable but non-toxic pollutants; Features two independent Tri-Link Check modules; Includes four test cocks and two drip tight shutoff valves; 70% lighter than traditional designs. material: 304 (Schedule 40) Stainless Steel Housing & Sleeve, EPDM/Silicone/Buna 'N' Elastomers, Noryl® Tri-Link Checks
Connection size2.5" – 10"
End connectionGroove End Connections
MountingHorizontal, Vertical Up, or N Pattern
ComplianceLead Free (<0.25% lead by weight), UL/FM (

Also cataloged as: LFM300GV, LFM300NBFG, LFM-300, LFM-300N
