DIV 21 · FIRE SUPPRESSIONPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksLFM500LFM500

Ames Fire & Waterworks Reduced Pressure Detector Assembly. Model LFM500, LFM500N, LFM500Z. Sizes range from 2½" to 10"; Housing and sleeve made of 304 Schedule 40 Stainless Steel; Features two independent Link Check modules and a differential pressure relief valve; Available with OSY gate valves or BFG grooved gear operated butterfly valves. material: 304 (Schedule 40) Stainless Steel Housing & Sleeve, EPDM/Silicone/Buna 'N' Elastomers, Noryl/Stainless Steel Link Checks

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLFM500.pdfData sheet

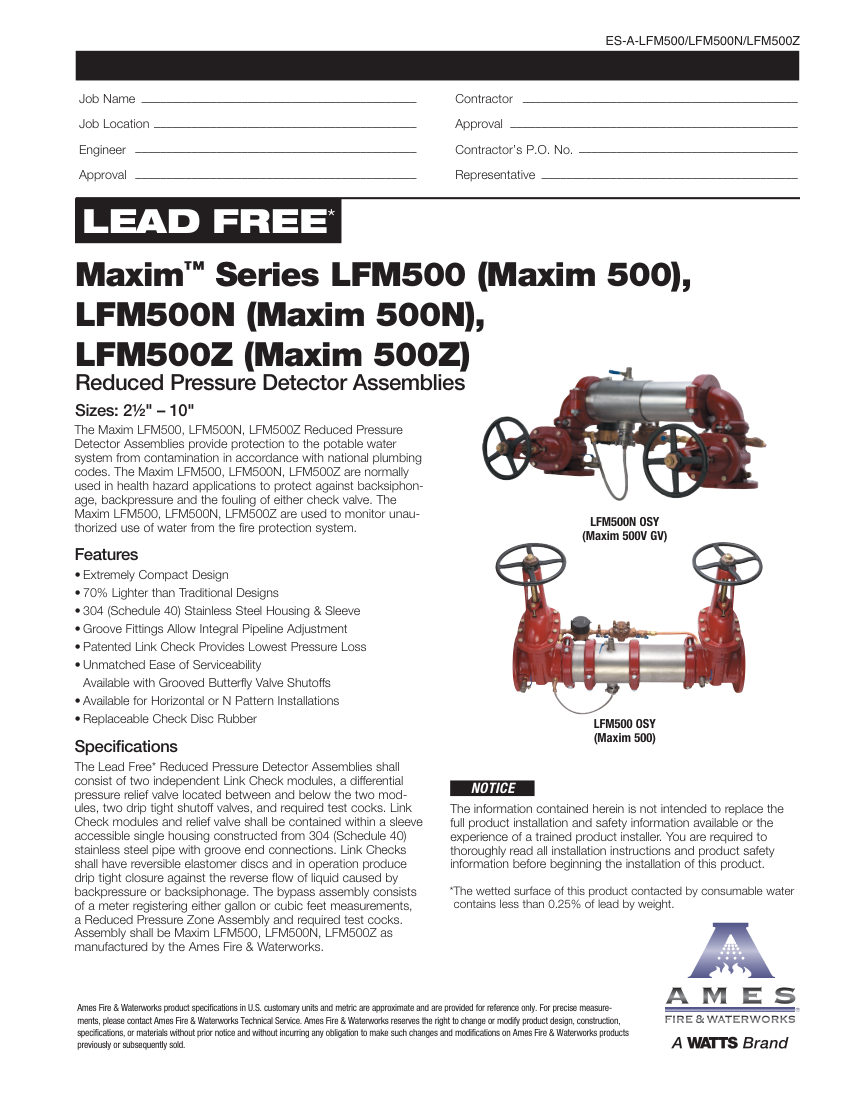

Ames Fire & Waterworks LFM500 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
LFM500
Product type
Plumbing
MasterFormat
21
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLFM500
DescriptionAmes Fire & Waterworks Reduced Pressure Detector Assembly. Model LFM500, LFM500N, LFM500Z. Sizes range from 2½" to 10"; Housing and sleeve made of 304 Schedule 40 Stainless Steel; Features two independent Link Check modules and a differential pressure relief valve; Available with OSY gate valves or BFG grooved gear operated butterfly valves. material: 304 (Schedule 40) Stainless Steel Housing & Sleeve, EPDM/Silicone/Buna 'N' Elastomers, Noryl/Stainless Steel Link Checks
Connection size2½" – 10"
End connectionGroove End Connections
MountingHorizontal, Z pattern horizontal, N pattern hori

Also cataloged as: LFM500N OSY, LFM500 OSY, LFM500 N, LFM500 Z, LFM500 BFG, LFM500 OSY FxG, LFM500 OSY GxF, LFM500 OSY GxG
