DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksAutomatic Control Valve LFPV20CLFPV20C

Ames Fire & Waterworks Pressure Relief, Sustaining or Backpressure Pilot (Automatic Control Valve Pilot). Model LFPV20C. Body Material: Lead Free Copper Silicon Alloy

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLFPV20C.pdfData sheet

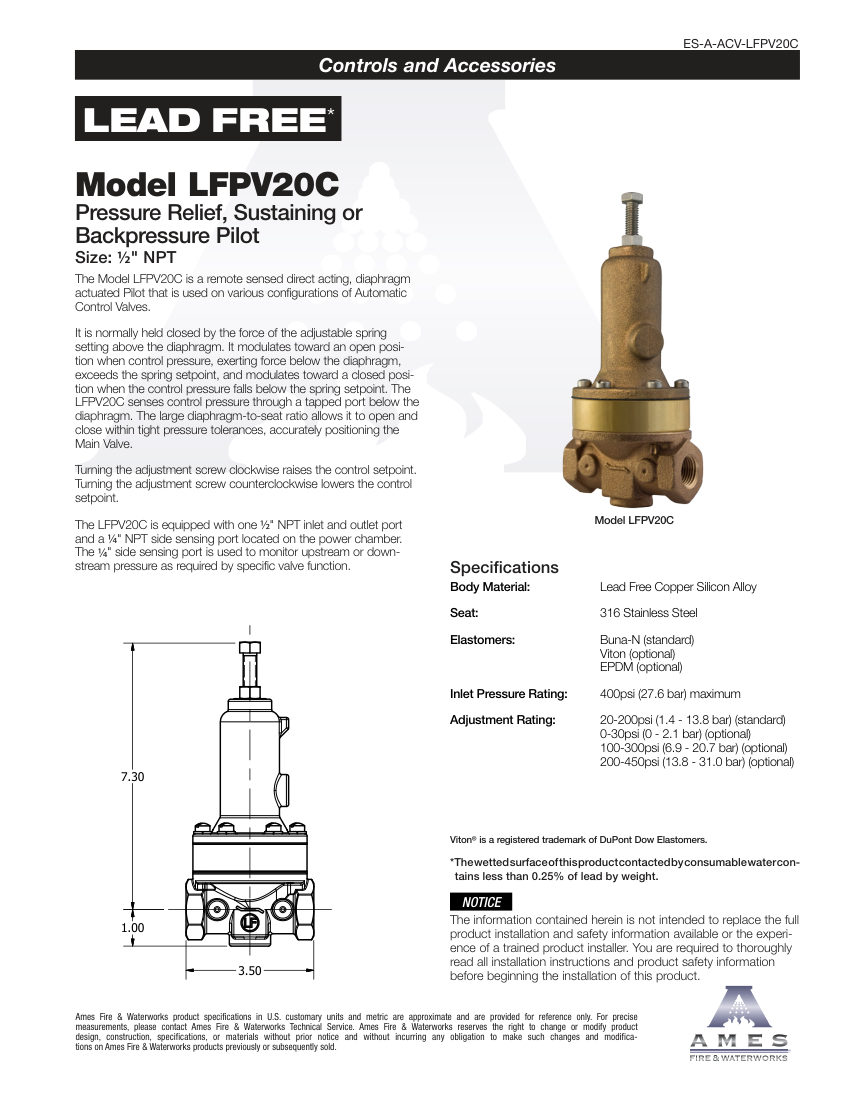

Ames Fire & Waterworks LFPV20C cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
LFPV20C
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLFPV20C
DescriptionAmes Fire & Waterworks Pressure Relief, Sustaining or Backpressure Pilot (Automatic Control Valve Pilot). Model LFPV20C. Body Material: Lead Free Copper Silicon Alloy
Seat Material316 Stainless Steel
Inlet Pressure Rating400psi (27.6 bar) maximum
Standard Adjustment Range20-200psi (1.4 - 13.8 bar). material: Lead Free Copper Silicon Alloy
Connection size1/2" NPT
End connectionNPT
Pressure Rating400psi (27.6 bar) maximum
ComplianceLead Free (<0.25% lead by weight).
