DIV 21 · FIRE SUPPRESSIONPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksM200NaM200Na

Ames Fire & Waterworks Double Check Valve Assembly (Backflow Prevention). Model M200Na. Consists of two independent Bi-Link Check modules, two shutoff valves, and four test cocks; Housing and sleeve constructed of 304 (Schedule 40) stainless steel; Check discs are reversible EPDM

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFM200Na.pdfData sheet

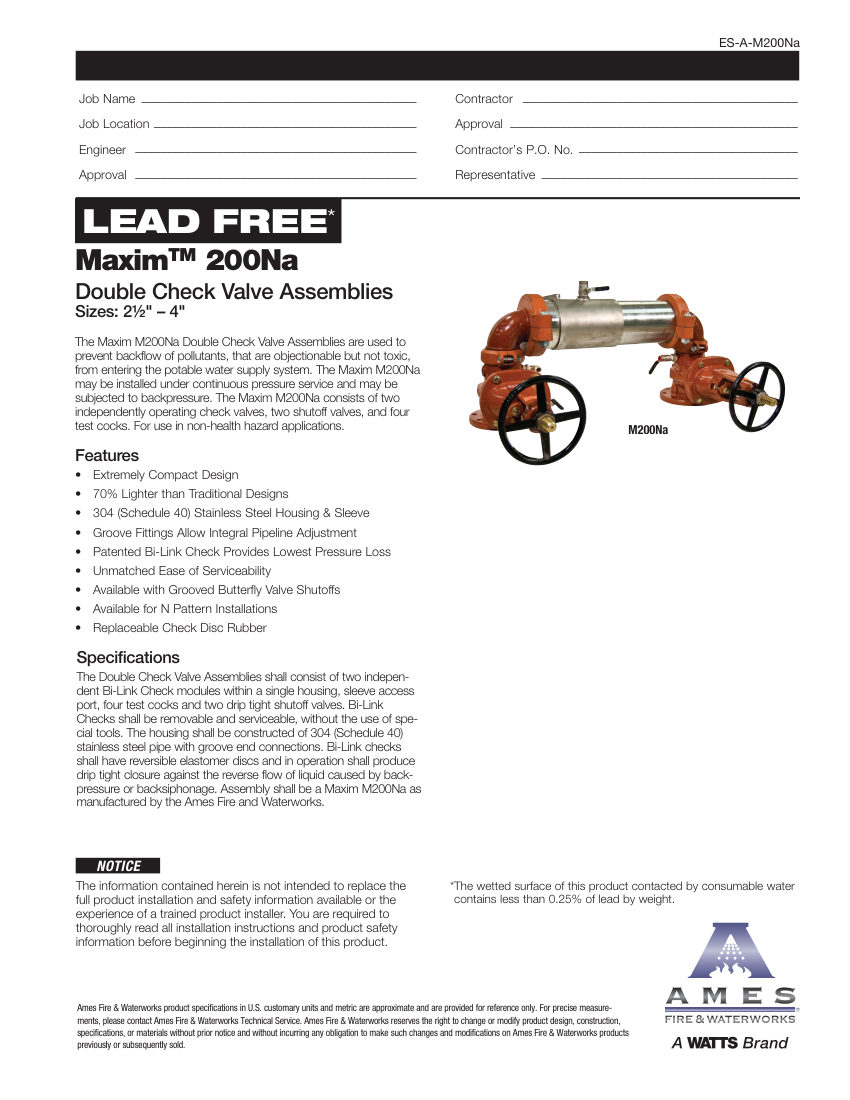

Ames Fire & Waterworks M200Na cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
M200Na
Product type
Plumbing
MasterFormat
21
Cut sheet
PDF · manufacturer current

Product details

Catalog numberM200Na
DescriptionAmes Fire & Waterworks Double Check Valve Assembly (Backflow Prevention). Model M200Na. Consists of two independent Bi-Link Check modules, two shutoff valves, and four test cocks; Housing and sleeve constructed of 304 (Schedule 40) stainless steel; Check discs are reversible EPDM
Temperature range33°F – 110°F (0.5°C – 43°C). material: 304 (Schedule 40) Stainless Steel
Connection size2½" – 4"
End connectionGroove
MountingHorizontal, Vertical up, N pattern horizontal
ComplianceLead Free (<0.25% lead).

Also cataloged as: M200NaBFG, M200N, M200Na-OSY, M200Na-BFG, M200Na-NRS, M200Na-OSY FxG, M200Na-OSY GXF, M200Na-OSY GxG, M200Na-N, M200Na-21/2, M200Na-3
