DIV 21 · FIRE SUPPRESSIONPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksM300M300

Ames Fire & Waterworks Double Check Detector Assembly (Backflow Prevention). Model M300 / M300N. Designed for non-health hazard non-potable service (irrigation, fire line, industrial); Consists of two independent Tri-Link Check modules in a single housing; Includes four test cocks and two drip tight shutoff valves; Housing constructed of 304 Schedule 40 stainless steel with groove end connections. material: 304 (Schedule 40) Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFM300.pdfData sheet

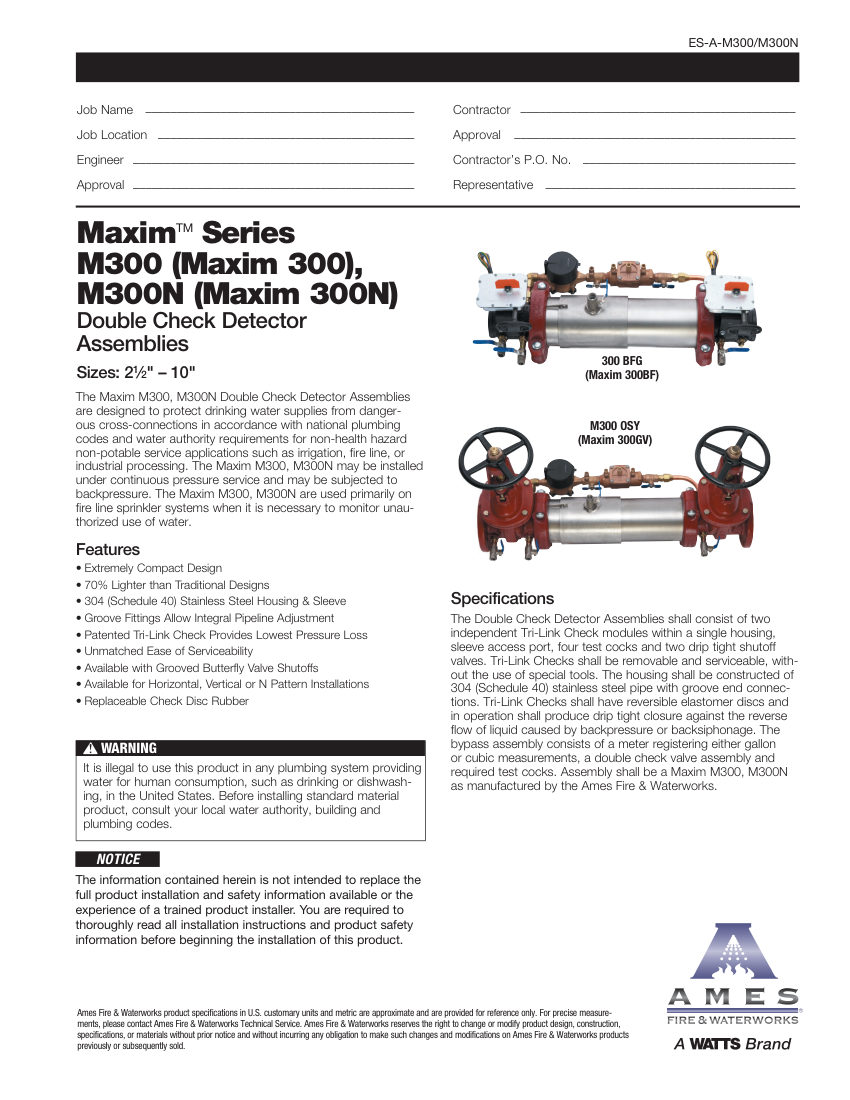

Ames Fire & Waterworks M300 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
M300
Product type
Plumbing
MasterFormat
21
Cut sheet
PDF · manufacturer current

Product details

Catalog numberM300
DescriptionAmes Fire & Waterworks Double Check Detector Assembly (Backflow Prevention). Model M300 / M300N. Designed for non-health hazard non-potable service (irrigation, fire line, industrial); Consists of two independent Tri-Link Check modules in a single housing; Includes four test cocks and two drip tight shutoff valves; Housing constructed of 304 Schedule 40 stainless steel with groove end connections. material: 304 (Schedule 40) Stainless Steel
Connection size2.5" – 10"
End connectionGroove
MountingHorizontal, Vertical, N Pattern
ComplianceNational plumbing codes, water authority require

Also cataloged as: M300 OSY, 300 BFG, M300BFG, M300NBFG, M300-N, M300-OSY, M300-BFG, M300-OSY FxG, M300-OSY GxF, M300-OSY GxG
