DIV 21 · FIRE SUPPRESSIONPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksM300NaM300Na

Name: Ames Fire & Waterworks M300Na
Brand: Ames Fire & Waterworks
SKU: M300Na

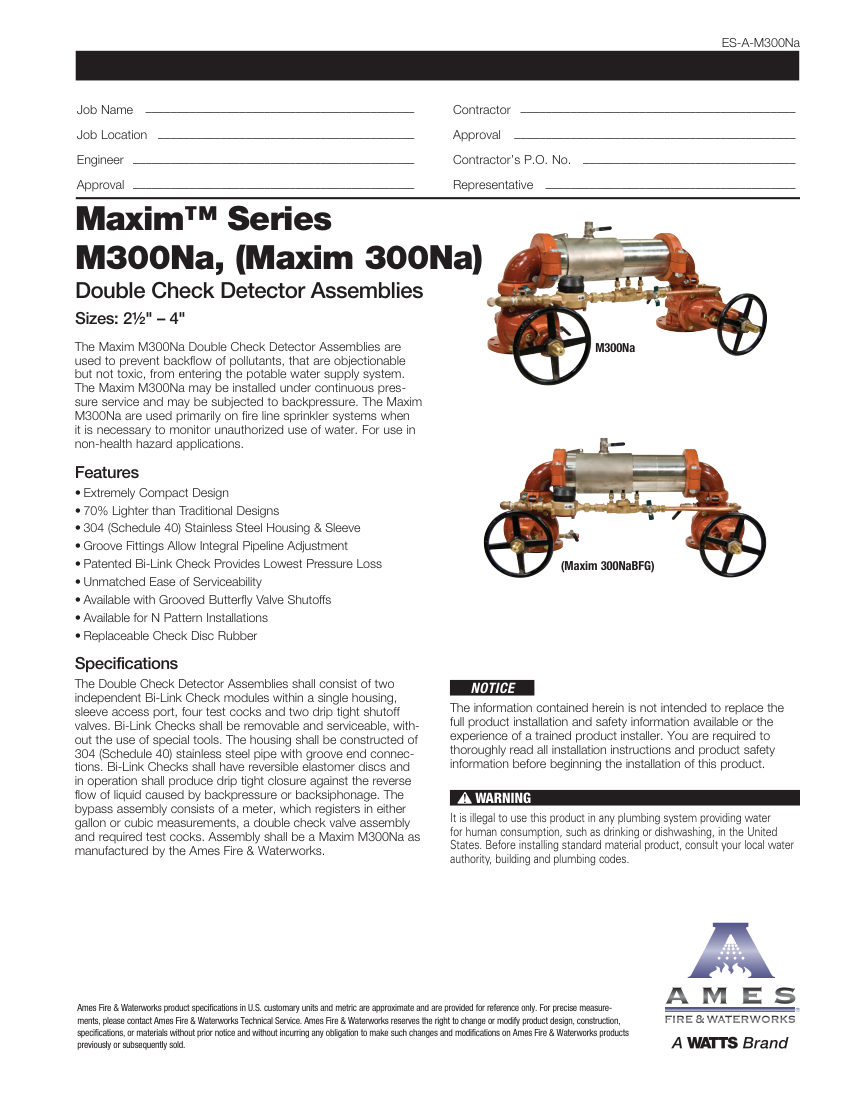

Ames Fire & Waterworks Double Check Detector Assembly (Backflow Prevention). Model M300Na. Sizes: 2½" – 4"

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	M300Na
Description	Ames Fire & Waterworks Double Check Detector Assembly (Backflow Prevention). Model M300Na. Sizes: 2½" – 4"
Maximum Working Pressure	175psi (12.1 bar)
Temperature Range	33°F – 110°F (0.5°C – 43°C)
Housing	304 (Schedule 40) Stainless Steel. material: 304 (Schedule 40) Stainless Steel
Connection size	2½" – 4"
End connection	Groove
Pressure Rating	175psi (12.1 bar)
Mounting	Horizontal N Pattern
Compliance	UL/FM.

Also cataloged as: M300NaBFG, M300Na-OSY, M300Na-BFG, M300Na-OSY FxG, M300Na-OSY GXF, M300Na-OSY GxG
