DIV 21 · FIRE SUPPRESSIONPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksM400M400 OSY

Name: Ames Fire & Waterworks M400 (M400 OSY)
Brand: Ames Fire & Waterworks
SKU: M400 OSY

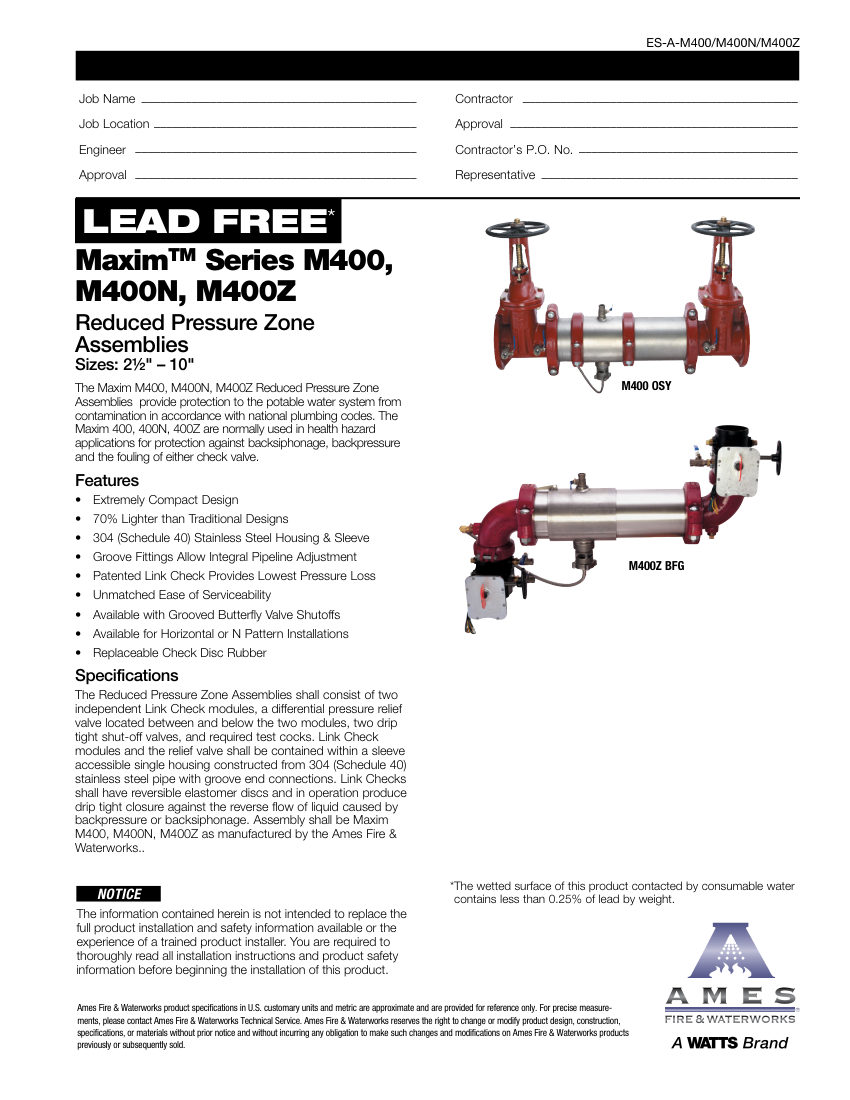

Ames Fire & Waterworks Reduced Pressure Zone Assembly. Model M400, M400N, M400Z. Sizes: 2½" – 10"

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	M400 OSY
Description	Ames Fire & Waterworks Reduced Pressure Zone Assembly. Model M400, M400N, M400Z. Sizes: 2½" – 10"
Housing	304 (Schedule 40) Stainless Steel
Configuration	Horizontal, Z pattern, or N pattern
Valve Options	NRS, OSY, or BFG shutoffs. material: 304 (Schedule 40) Stainless Steel Housing & Sleeve, EPDM/Silicone/Buna 'N' Elastomers, Noryl Link Checks
Connection size	2½" – 10"
End connection	Groove End Connections
Mounting	Horizontal, Z pattern horizontal, N pattern horizontal
Compliance	Lead Free (<0.25% lead), National Plumbing Codes.

Also cataloged as: M400Z BFG
