DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & Waterworks

Ames Fire & Waterworks Reduced Pressure Zone Assembly (Reduced Pressure Zone Assemblies). Model 4000B. Sizes 1/2" to 2" (15-50mm); Bronze body construction; Two in-line independent check valves with captured springs; Internal pressure differential relief valve. material: Bronze body, silicone rubber discs, replaceable polymer check seats, stainless steel relief valve seat and cover bolts

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

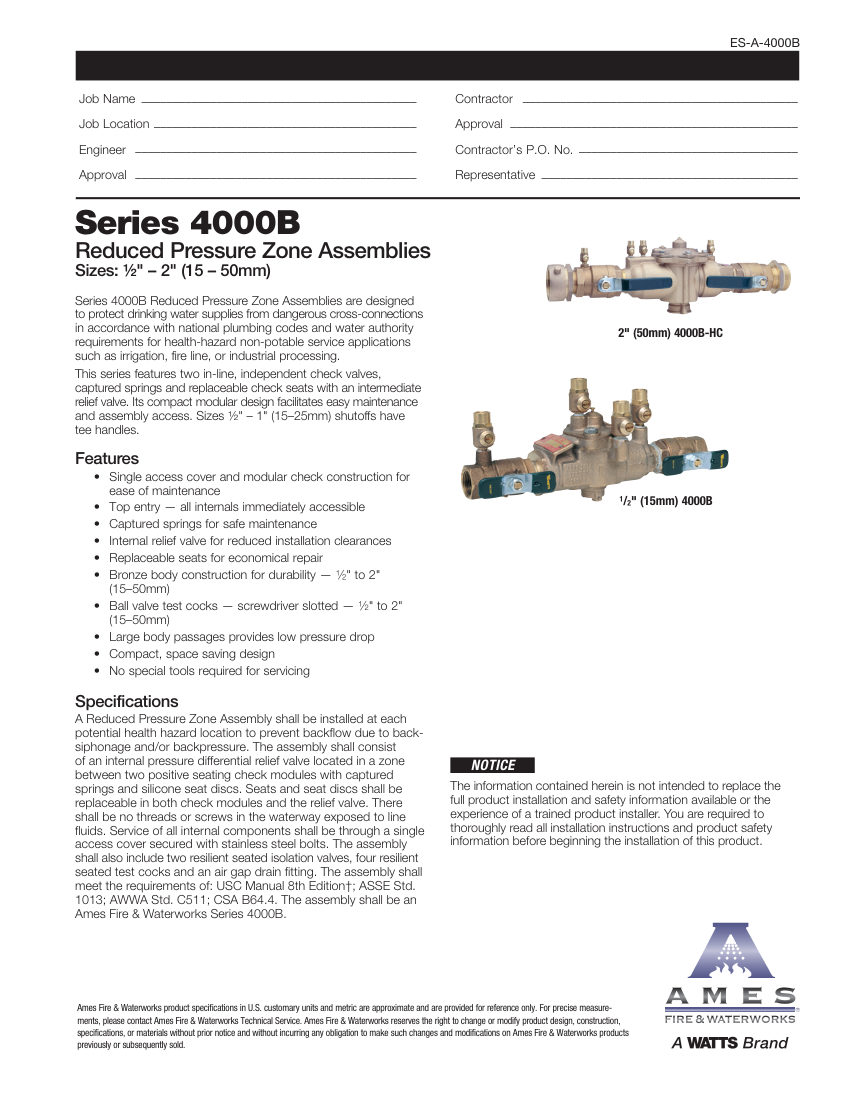

Ames Fire & Waterworks cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionAmes Fire & Waterworks Reduced Pressure Zone Assembly (Reduced Pressure Zone Assemblies). Model 4000B. Sizes 1/2" to 2" (15-50mm); Bronze body construction; Two in-line independent check valves with captured springs; Internal pressure differential relief valve. material: Bronze body, silicone rubber discs, replaceable polymer check seats, stainless steel relief valve seat and cover bolts
Connection size1/2" – 2" (15 – 50mm)
End connectionNPT body connections (standard), optional bronze union inlet/outlet
Pressure RatingUp to 175 psi (12.06 bar)
ComplianceAWWA C511-92, USC Manual 8th E
