DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & Waterworks

Ames Fire & Waterworks Reduced Pressure Zone Assembly (Reduced Pressure Zone Assemblies). Model 4000B-FP. Two in-line independent check valves with captured springs; Intermediate relief valve for pressure differential; Gear operated slow close resilient seated shutoffs; Pre-wired tamper switches (2 per shutoff). material: Bronze body, silicone rubber disc, polymer check seats

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

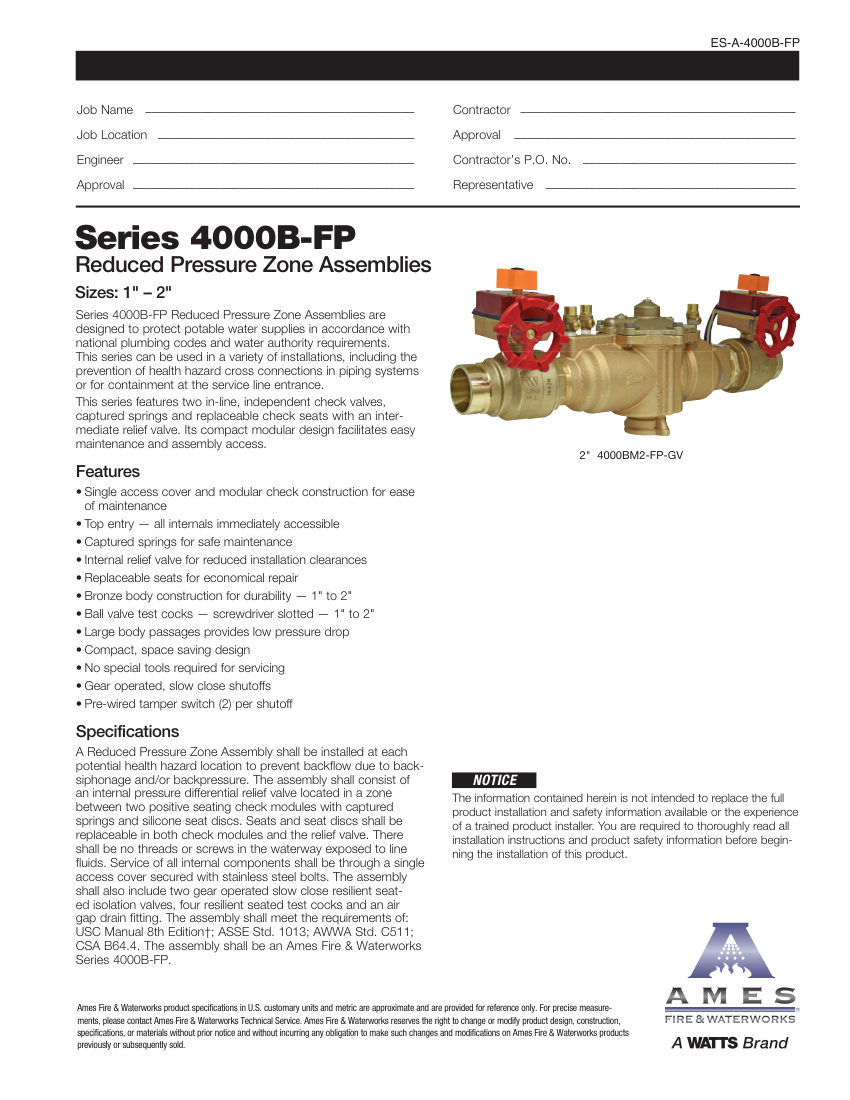

Ames Fire & Waterworks cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionAmes Fire & Waterworks Reduced Pressure Zone Assembly (Reduced Pressure Zone Assemblies). Model 4000B-FP. Two in-line independent check valves with captured springs; Intermediate relief valve for pressure differential; Gear operated slow close resilient seated shutoffs; Pre-wired tamper switches (2 per shutoff). material: Bronze body, silicone rubber disc, polymer check seats
Connection size1" – 2"
End connectionNPT (Standard), Grooved (GV suffix)
Pressure Rating175 psi (12.06 bar)
ComplianceUSC Manual 8th Edition, ASSE Std. 1013, AWWA Std. C511, CSA B64.4, IAPMO File No. 1563.
