DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & Waterworks

Name: Ames Fire & Waterworks
Brand: Ames Fire & Waterworks

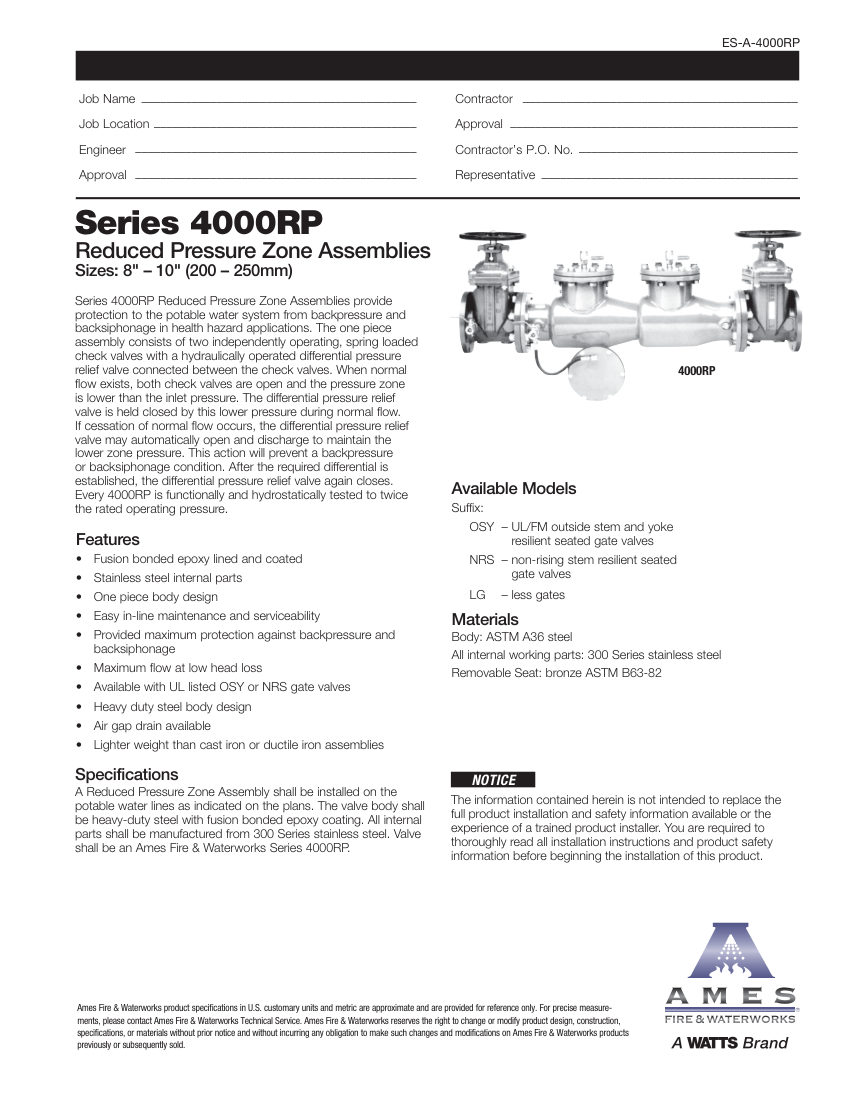

Ames Fire & Waterworks Reduced Pressure Zone Assembly (Reduced Pressure Zone Assemblies). Model 4000RP. Sizes: 8" – 10" (200 – 250mm)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number
Description	Ames Fire & Waterworks Reduced Pressure Zone Assembly (Reduced Pressure Zone Assemblies). Model 4000RP. Sizes: 8" – 10" (200 – 250mm)
Maximum Working Pressure	175 psi (12.06 bar)
Temperature Range	33°F – 110°F (5°C – 43°C)
Body Material	ASTM A36 steel with fusion bonded epoxy coating. material: ASTM A36 steel body, 300 Series stainless steel internal parts, bronze removable seat
Connection size	8" – 10" (200 – 250mm)
End connection	Flanged (ANSI B16.5 Class 125/AWWA C207 Class D)
Pressure Rating	175 psi (12.06 bar)
Finish	Fusion bonded epoxy lined and coated
Mounting	In-line.
