Ames Fire & Waterworks
Ames Fire & Waterworks Cast Iron Silent Check Valve (Check Valves). Model ACVW-125. Conical spring design allows greater flow coefficient (Cv); Designed to prevent water hammer effect; Not for use in steam service; Sizes range from 2 inches to 10 inches. material: Cast Iron Body, Bronze Disc/Seat/Bushing, Stainless Steel Spring
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Ames Fire & Waterworks
- Catalog no.
- Product type
- Plumbing
- MasterFormat
- 22
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | |
|---|---|
| Description | Ames Fire & Waterworks Cast Iron Silent Check Valve (Check Valves). Model ACVW-125. Conical spring design allows greater flow coefficient (Cv); Designed to prevent water hammer effect; Not for use in steam service; Sizes range from 2 inches to 10 inches. material: Cast Iron Body, Bronze Disc/Seat/Bushing, Stainless Steel Spring |
| Connection size | 2" – 10" (50 – 250mm) |
| End connection | Flanged |
| Pressure Rating | 200 psi CWP to 150°F |
| Mounting | Horizontal or Vertical |
| Compliance | ASTM A126 Class B, ASTM B62, ASTM 302, ASTM 304. |

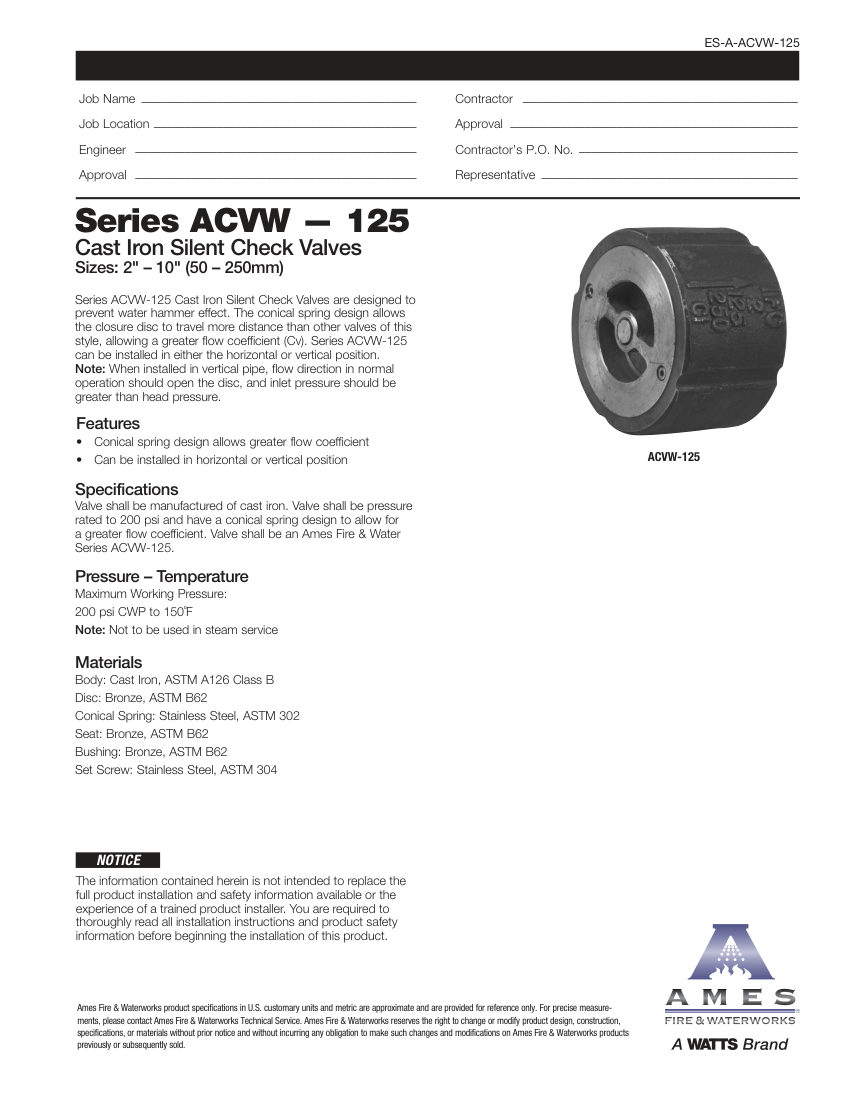

- Official cut sheet, indexed
