Name: Ames Fire & Waterworks
Brand: Ames Fire & Waterworks

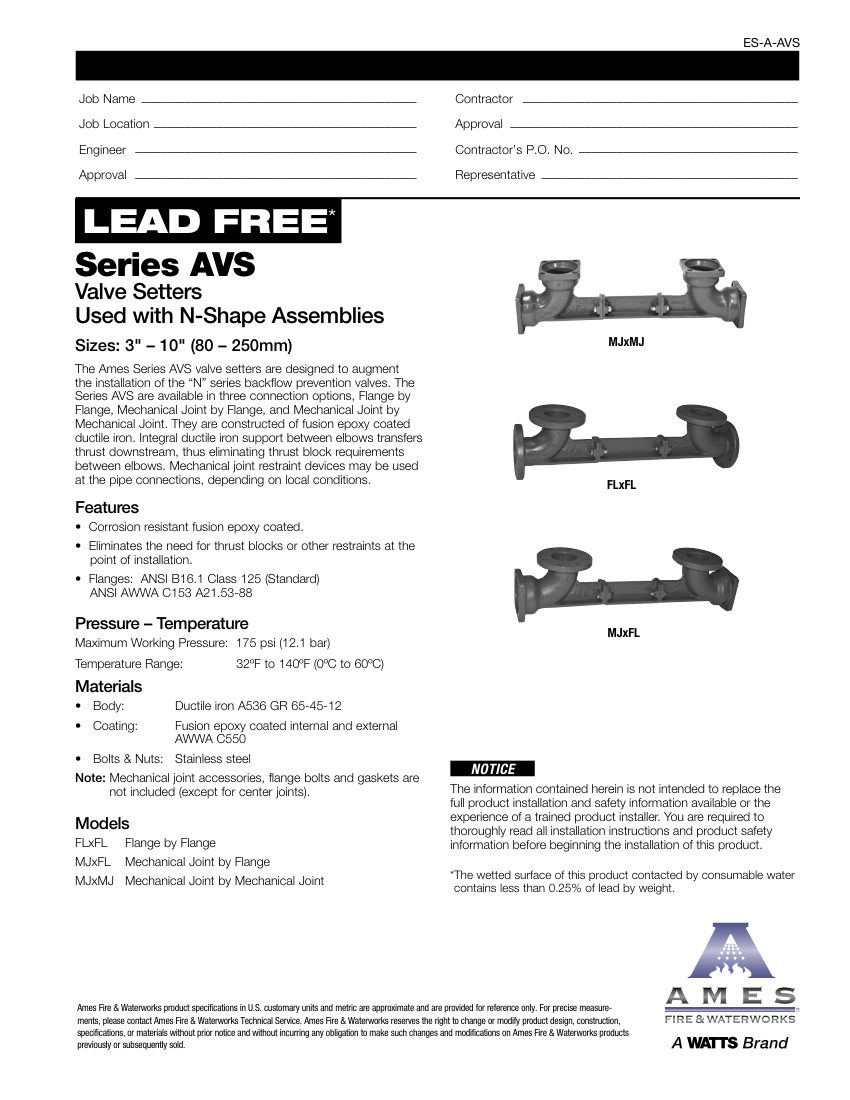

Ames Fire & Waterworks Valve Setter (Valve Setters). Model AVS. Maximum Working Pressure: 175 psi (12.1 bar)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number
Description	Ames Fire & Waterworks Valve Setter (Valve Setters). Model AVS. Maximum Working Pressure: 175 psi (12.1 bar)
Temperature Range	32ºF to 140ºF (0ºC to 60ºC)
Body Material	Ductile iron A536 GR 65-45-12
Coating	Fusion epoxy (AWWA C550). material: Ductile iron A536 GR 65-45-12, Fusion epoxy coated
Connection size	3" – 10" (80 – 250mm)
End connection	Flange by Flange, Mechanical Joint by Flange, Mechanical Joint by Mechanical Joint
Pressure Rating	175 psi (12.1 bar)
Finish	Fusion epoxy coated internal and external
Compliance	ANSI B16.1 Class 125, ANSI AWWA C153 A21.53-88, AWWA C550, Lea
