Ames Fire & Waterworks

Ames Fire & Waterworks Double Check Assembly (Backflow Prevention). Model C200, C200N. Consists of two independent triple-link check valves; Includes two shutoff valves and four test valves; OS&Y model offers optional integrated supervision switches; 70% lighter than conventional designs. material: 304 Stainless Steel (Schedule 40)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

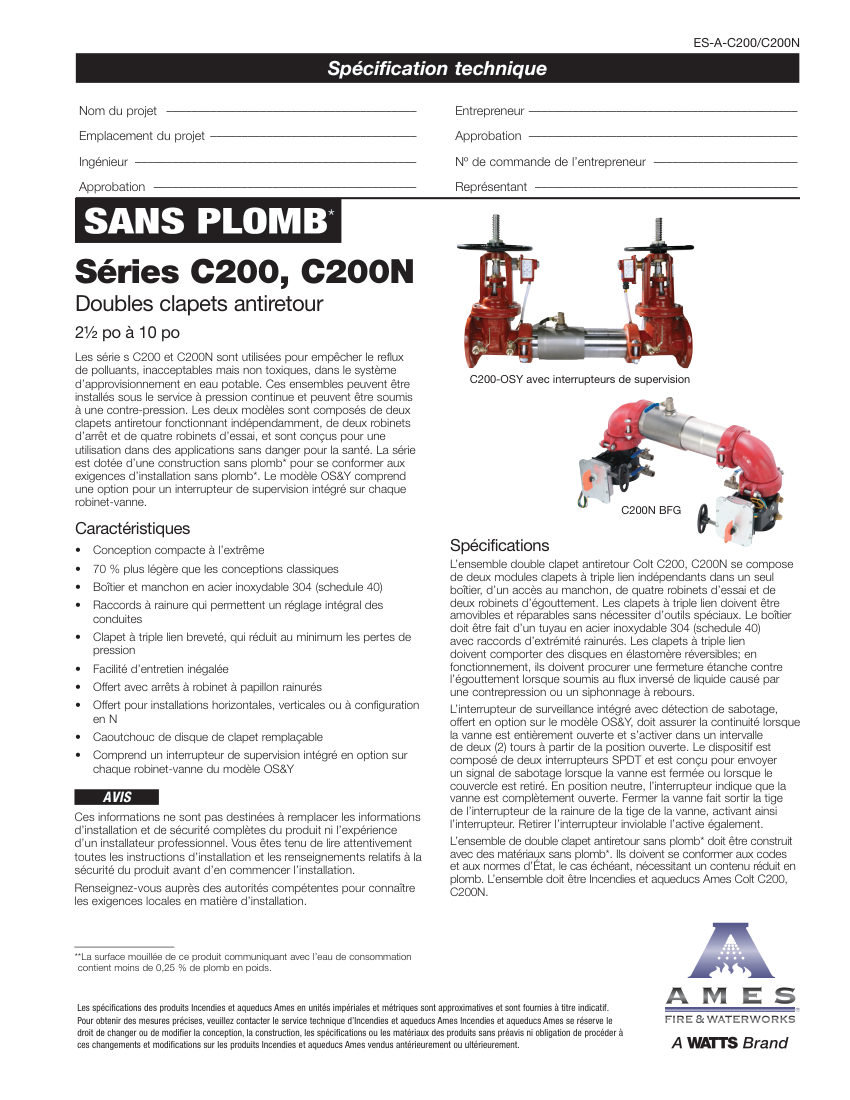

Ames Fire & Waterworks cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionAmes Fire & Waterworks Double Check Assembly (Backflow Prevention). Model C200, C200N. Consists of two independent triple-link check valves; Includes two shutoff valves and four test valves; OS&Y model offers optional integrated supervision switches; 70% lighter than conventional designs. material: 304 Stainless Steel (Schedule 40)
Connection size2.5 in to 10 in
End connectionGrooved
MountingHorizontal, Vertical, or N-configuration
ComplianceLead-free (wetted surface < 0.25% lead).
