Ames Fire & Waterworks

Ames Fire & Waterworks Reduced Pressure Detector Assembly (Backflow Prevention). Model 50GX. Dual-action second check module with poppet action at low flow and swing action at high flow; Includes two inline serviceable AWWA C509 gate valves with OS&Y stems; Relief valve constructed entirely of stainless steel without sliding seals; Bypass assembly includes a meter registering gallons or cubic feet. material: 304 Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

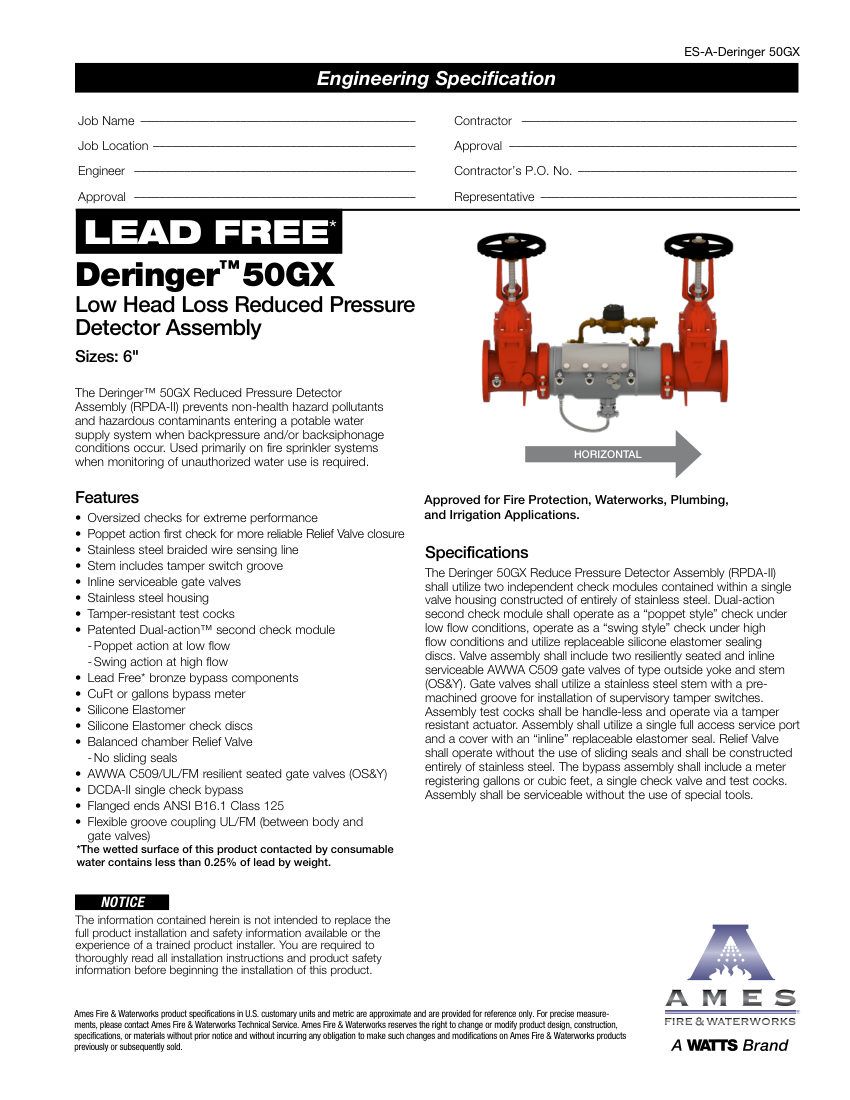

Ames Fire & Waterworks cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionAmes Fire & Waterworks Reduced Pressure Detector Assembly (Backflow Prevention). Model 50GX. Dual-action second check module with poppet action at low flow and swing action at high flow; Includes two inline serviceable AWWA C509 gate valves with OS&Y stems; Relief valve constructed entirely of stainless steel without sliding seals; Bypass assembly includes a meter registering gallons or cubic feet. material: 304 Stainless Steel
Connection size6"
End connectionFlanged ANSI B16.1 Class 125
Pressure Rating10 – 175psi
MountingHorizontal
ComplianceAWWA C511-07, NSF/ANSI 372, UL Certifie
