Ames Fire & Waterworks

Ames Fire & Waterworks In-Building Riser (In-Building Risers). Model IBR2. Single extended 90-degree fitting; Corrosion resistant Type 304 stainless steel construction; Lead Free wetted surface (<0.25% lead by weight); Factory tested integrity. material: Type 304 Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

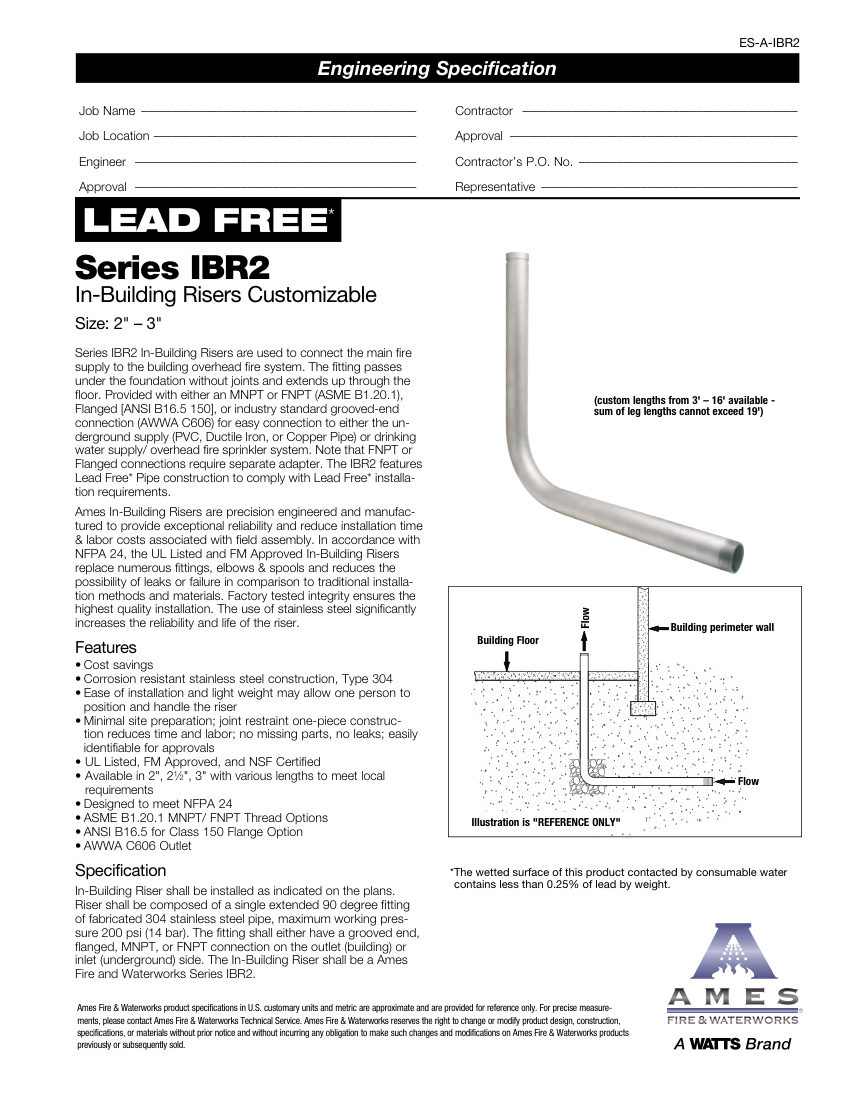

Ames Fire & Waterworks cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionAmes Fire & Waterworks In-Building Riser (In-Building Risers). Model IBR2. Single extended 90-degree fitting; Corrosion resistant Type 304 stainless steel construction; Lead Free wetted surface (<0.25% lead by weight); Factory tested integrity. material: Type 304 Stainless Steel
Connection size2", 2-1/2", 3"
End connectionMNPT, FNPT, Flanged (ANSI B16.5 150), Grooved (AWWA C606)
Pressure Rating200 psi (14 bar)
MountingVertical/Horizontal
DimensionsCustom lengths 3' - 16' (sum of leg lengths max 19').
