Ames Fire & Waterworks

Name: Ames Fire & Waterworks
Brand: Ames Fire & Waterworks

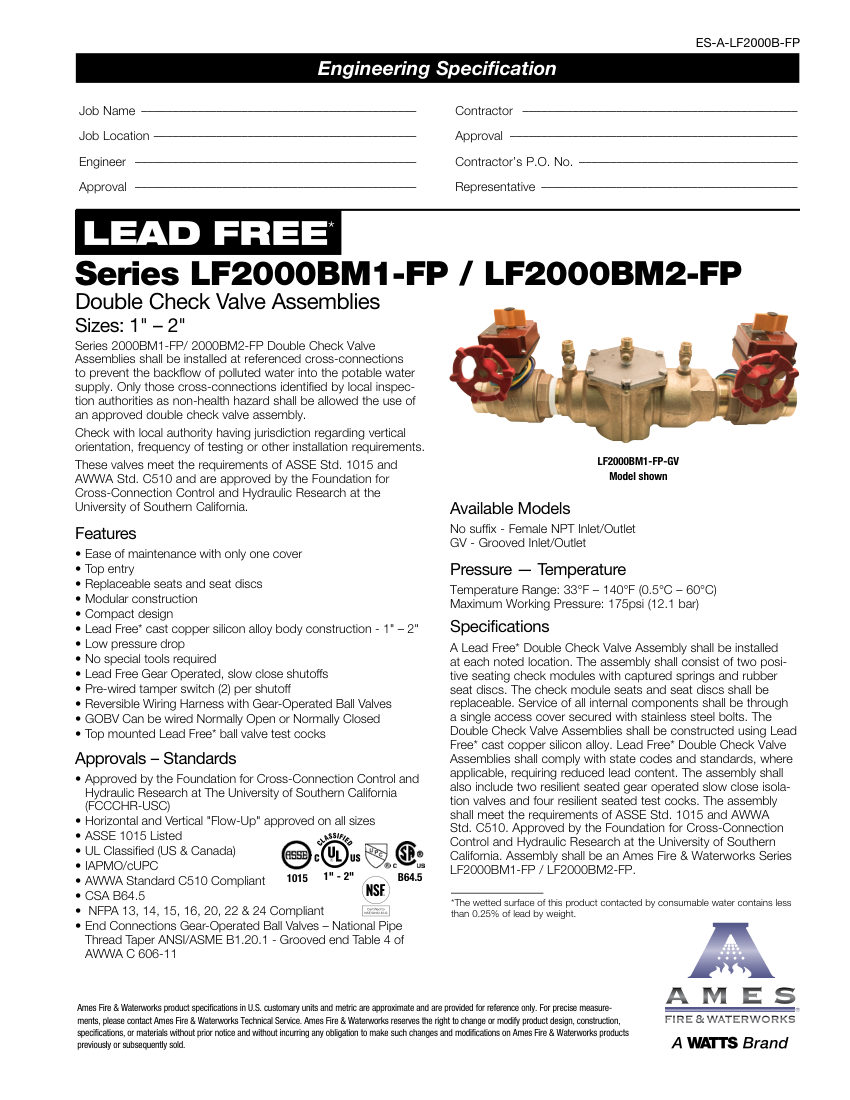

Ames Fire & Waterworks Double Check Valve Assembly (Double Check Valve Assemblies). Model LF2000B-FP. Maximum Working Pressure: 175psi (12.1 bar)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number
Description	Ames Fire & Waterworks Double Check Valve Assembly (Double Check Valve Assemblies). Model LF2000B-FP. Maximum Working Pressure: 175psi (12.1 bar)
Temperature Range	33°F – 140°F (0.5°C – 60°C); Includes two gear-operated slow close shutoffs and four test cocks; Pre-wired tamper switch per shutoff. material: Lead Free cast copper silicon alloy
Connection size	1" – 2"
End connection	Female NPT Inlet/Outlet or Grooved Inlet/Outlet
Pressure Rating	175psi (12.1 bar)
Mounting	Horizontal and Vertical "Flow-Up"
Compliance	ASSE Std. 1015, AWWA Std. C510, UL Classified, IAPMO/cUPC, CSA B64.5, NF
