DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & Waterworks

Ames Fire & Waterworks Reduced Pressure Detector Assembly. Model LFC500. Consists of two independent Link Check modules and a differential pressure relief valve; Features a flood sensor to detect excessive water discharges from the relief valve; Includes a metered bypass to detect leakage or theft of water; OS&Y model includes an option for an integrated supervisory switch on each gate valve. material: Type 304 (Schedule 40) stainless steel housing and sleeve; Lead Free* bronze body

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

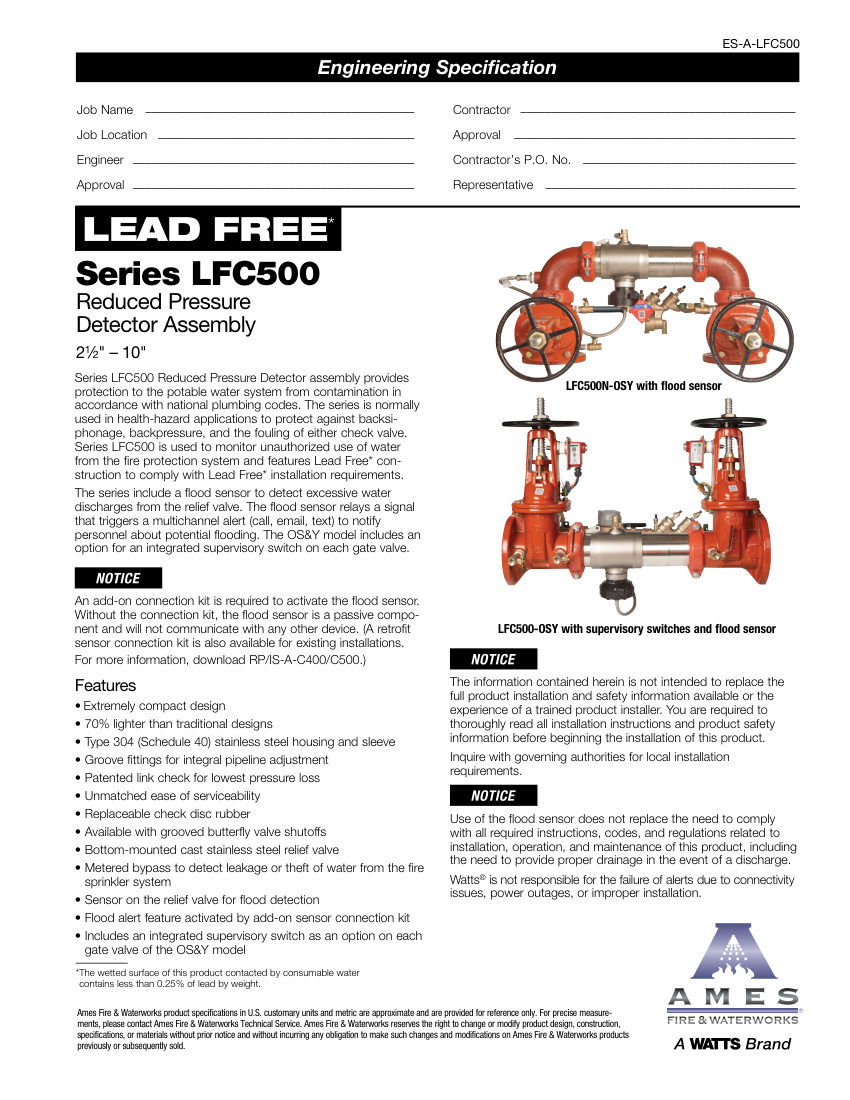

Ames Fire & Waterworks cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionAmes Fire & Waterworks Reduced Pressure Detector Assembly. Model LFC500. Consists of two independent Link Check modules and a differential pressure relief valve; Features a flood sensor to detect excessive water discharges from the relief valve; Includes a metered bypass to detect leakage or theft of water; OS&Y model includes an option for an integrated supervisory switch on each gate valve. material: Type 304 (Schedule 40) stainless steel housing and sleeve; Lead Free* bronze body
Connection size2.5" – 10"
End connectionGroove end connections
MountingHorizontal, Z pattern horizontal,
