DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & Waterworks

Ames Fire & Waterworks Reduced Pressure Detector Assembly. Model LFM500, LFM500N, LFM500Z. Sizes range from 2½" to 10"; Housing and sleeve made of 304 Schedule 40 Stainless Steel; Features two independent Link Check modules and a differential pressure relief valve; Available with OSY gate valves or BFG butterfly valves. material: 304 (Schedule 40) Stainless Steel Housing & Sleeve, EPDM/Silicone/Buna 'N' Elastomers, Noryl/Stainless Steel Link Checks

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

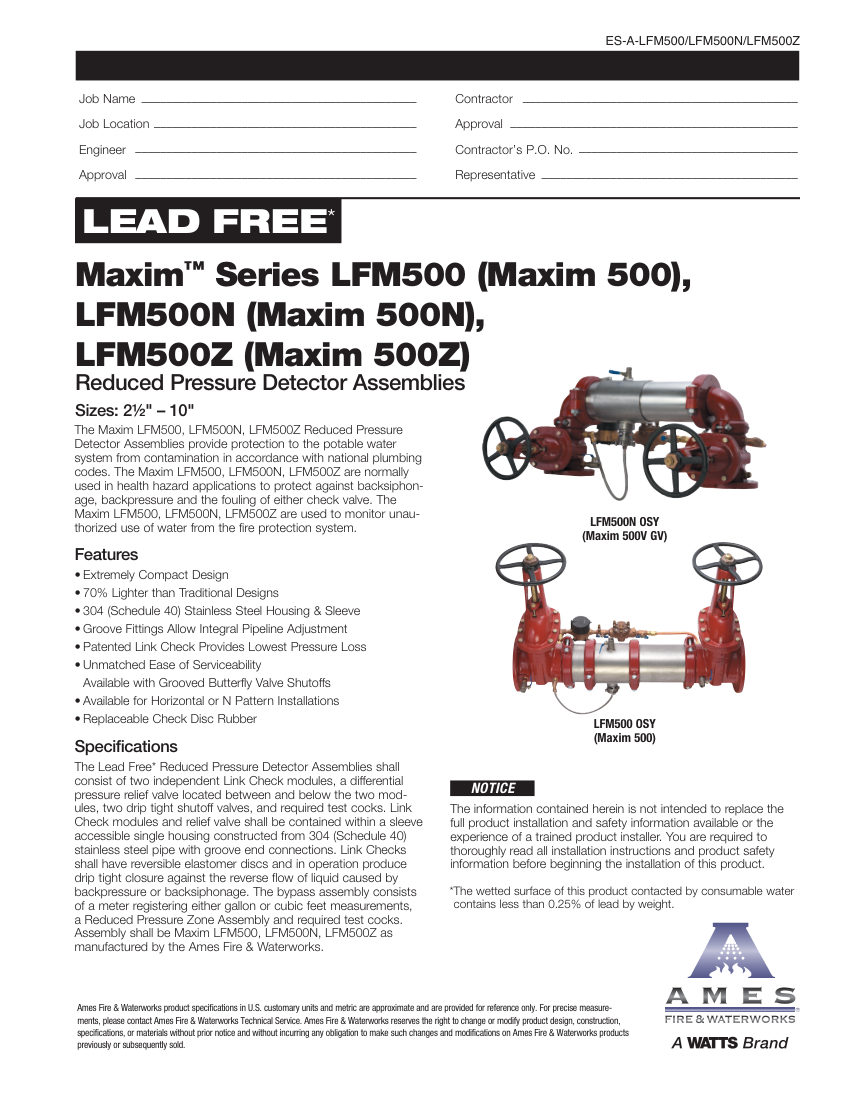

Ames Fire & Waterworks cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionAmes Fire & Waterworks Reduced Pressure Detector Assembly. Model LFM500, LFM500N, LFM500Z. Sizes range from 2½" to 10"; Housing and sleeve made of 304 Schedule 40 Stainless Steel; Features two independent Link Check modules and a differential pressure relief valve; Available with OSY gate valves or BFG butterfly valves. material: 304 (Schedule 40) Stainless Steel Housing & Sleeve, EPDM/Silicone/Buna 'N' Elastomers, Noryl/Stainless Steel Link Checks
Connection size2½" – 10"
End connectionGroove end connections
MountingHorizontal, Z pattern horizontal, N pattern horizontal
ComplianceLe
