DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & Waterworks

Ames Fire & Waterworks Double Check Valve Assembly (Backflow Prevention). Model M200a, M200Na. Consists of two independent Bi-Link Check modules, two shutoff valves, and four test cocks; Bi-Link Checks are removable and serviceable without special tools; Check discs are reversible EPDM; Available with OSY, BFG, or NRS shutoff valve configurations. material: 304 (Schedule 40) Stainless Steel Housing & Sleeve, EPDM/Buna 'N' Elastomers, Noryl® Checks

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

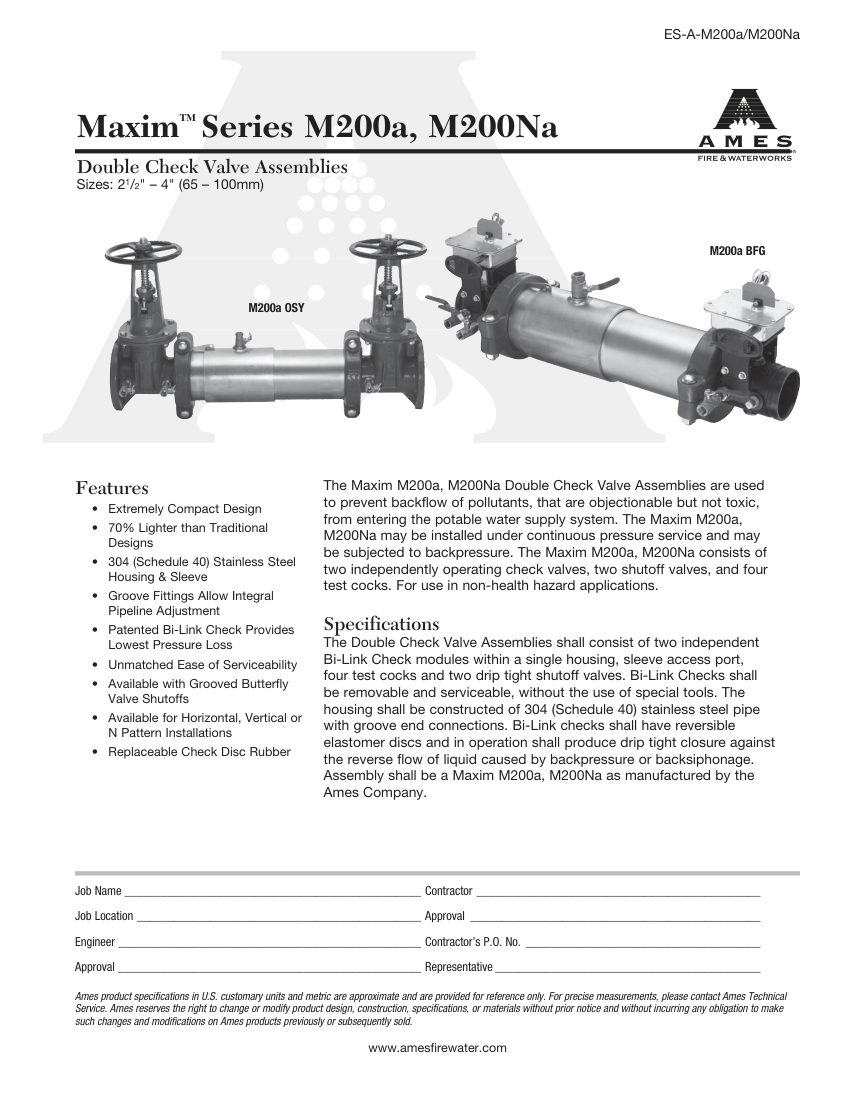

Ames Fire & Waterworks cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionAmes Fire & Waterworks Double Check Valve Assembly (Backflow Prevention). Model M200a, M200Na. Consists of two independent Bi-Link Check modules, two shutoff valves, and four test cocks; Bi-Link Checks are removable and serviceable without special tools; Check discs are reversible EPDM; Available with OSY, BFG, or NRS shutoff valve configurations. material: 304 (Schedule 40) Stainless Steel Housing & Sleeve, EPDM/Buna 'N' Elastomers, Noryl® Checks
Connection size2-1/2" – 4" (65 – 100mm)
End connectionGroove End, Flanged (Optional)
MountingHorizontal, Vertical Up, N Pattern; compliance:
