Ames Fire & Waterworks Double Check Valve Assembly (Backflow Prevention). Model M200Na. Consists of two independent Bi-Link Check modules, two shutoff valves, and four test cocks; Housing and sleeve made of 304 (Schedule 40) Stainless Steel; Check discs are reversible EPDM

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

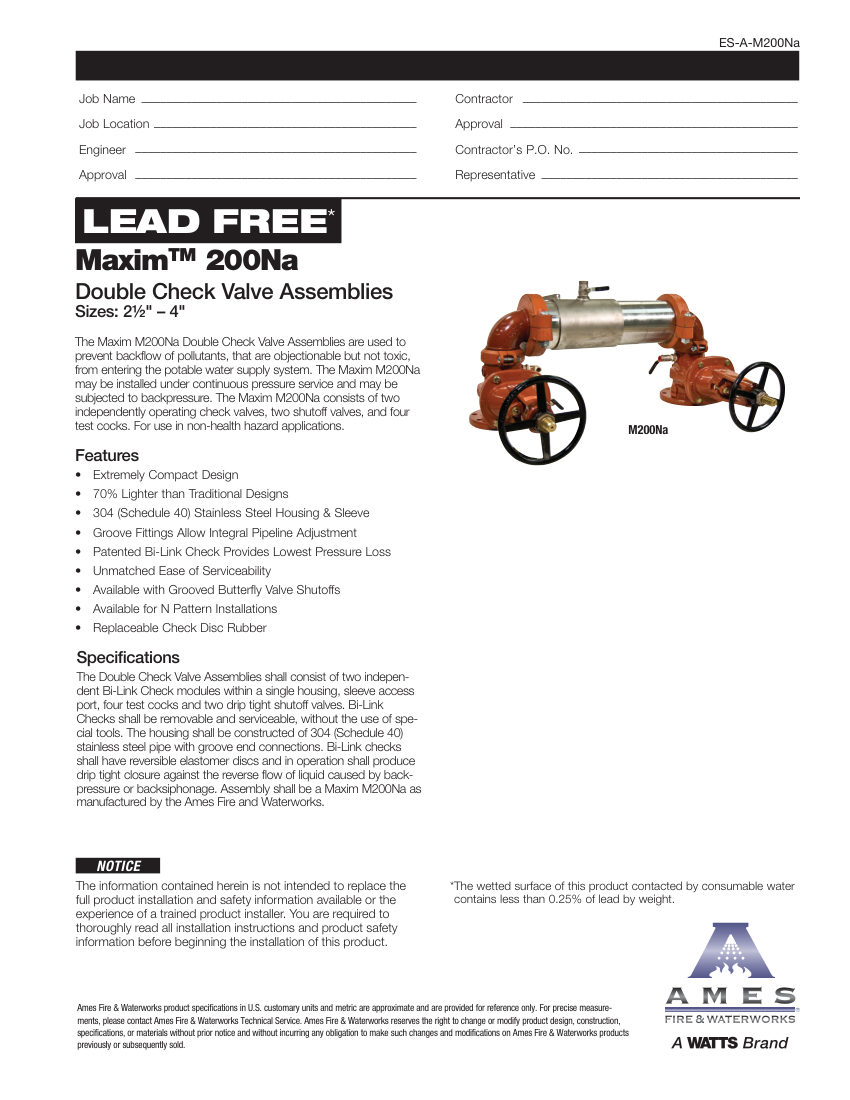

Ames Fire & Waterworks cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionAmes Fire & Waterworks Double Check Valve Assembly (Backflow Prevention). Model M200Na. Consists of two independent Bi-Link Check modules, two shutoff valves, and four test cocks; Housing and sleeve made of 304 (Schedule 40) Stainless Steel; Check discs are reversible EPDM
Temperature range33°F – 110°F (0.5°C – 43°C). material: 304 (Schedule 40) Stainless Steel
Connection size2½" – 4"
End connectionGroove
MountingHorizontal, Vertical up, N pattern horizontal
ComplianceLead Free (<0.25% lead by weight).
