DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & Waterworks

Ames Fire & Waterworks Reduced Pressure Zone Assembly (Reduced Pressure Zone Assemblies). Model M400, M400N, M400Z. Sizes range from 2½" to 10"; Housing and sleeve made of 304 Schedule 40 Stainless Steel; Features patented Link Check modules for lowest pressure loss; Available with OSY, NRS, or BFG shutoff valves. material: 304 (Schedule 40) Stainless Steel Housing & Sleeve; EPDM, Silicone, Buna 'N' Elastomers; Noryl® Link Checks

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

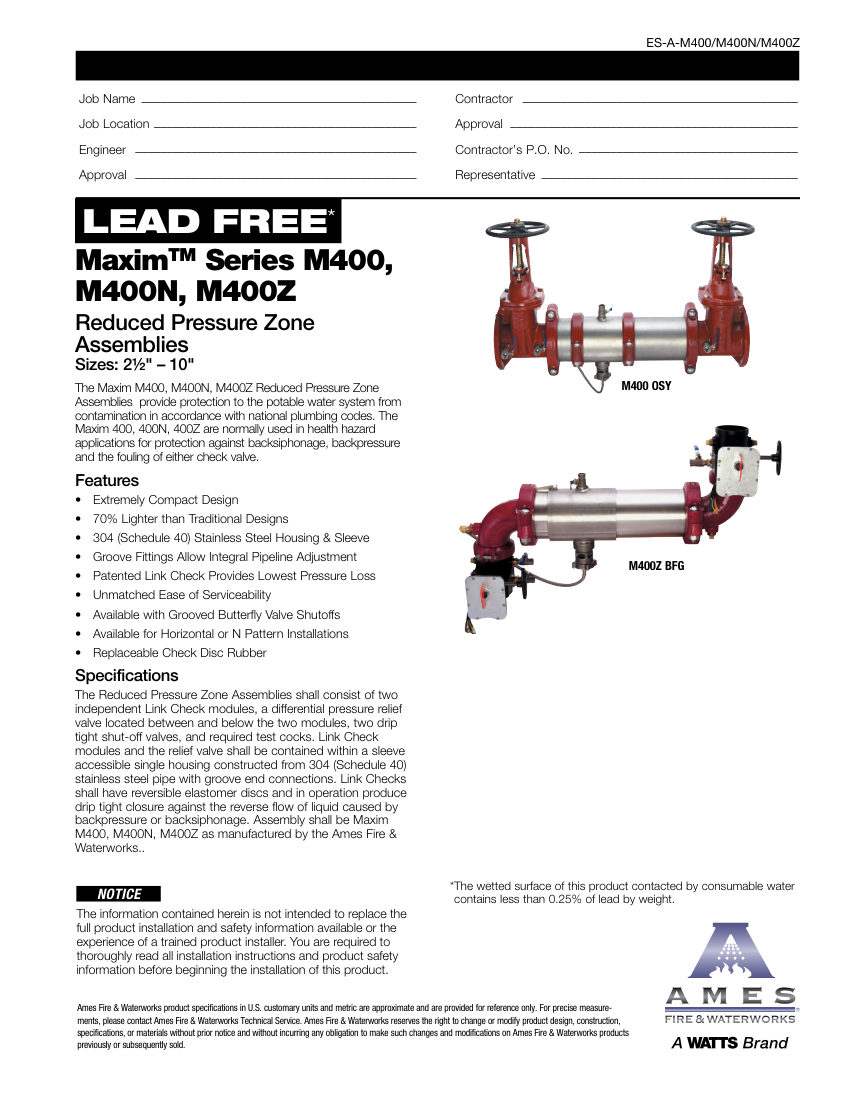

Ames Fire & Waterworks cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionAmes Fire & Waterworks Reduced Pressure Zone Assembly (Reduced Pressure Zone Assemblies). Model M400, M400N, M400Z. Sizes range from 2½" to 10"; Housing and sleeve made of 304 Schedule 40 Stainless Steel; Features patented Link Check modules for lowest pressure loss; Available with OSY, NRS, or BFG shutoff valves. material: 304 (Schedule 40) Stainless Steel Housing & Sleeve; EPDM, Silicone, Buna 'N' Elastomers; Noryl® Link Checks
Connection size2½" – 10"
End connectionGroove End Connections
MountingHorizontal, Z pattern horizontal, N pattern horizontal
ComplianceLead Free (<0.25% lea
