DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & Waterworks

Ames Fire & Waterworks Reduced Pressure Zone Assembly (Backflow Prevention). Model 4000B, 4000CIV, 4000SS, 4000RP, 5000CIV, 5000RPDA, 5000SS, Colt/Maxim 400, 500. Applies to Series 4000B, 4000CIV, 4000SS, 4000RP, 5000CIV, 5000RPDA, 5000SS, Colt/Maxim 400, 500; Charts display catastrophic or worst-case discharge rates; Data derived by pressurizing outlet with second check valve internals removed; Flow rates provided in both LPM and GPM. connectionSize: 1/4", 3/8", 1/2", 3/4", 1", 1-1/4"

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

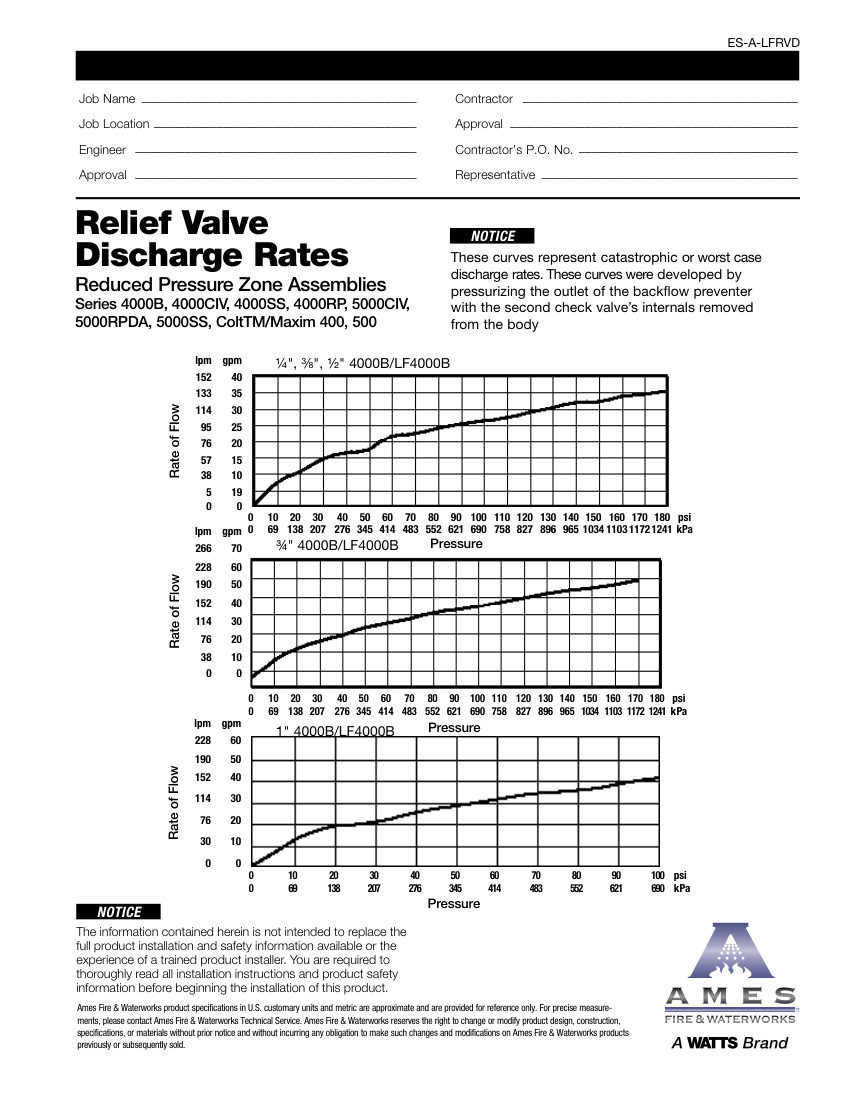

Ames Fire & Waterworks cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionAmes Fire & Waterworks Reduced Pressure Zone Assembly (Backflow Prevention). Model 4000B, 4000CIV, 4000SS, 4000RP, 5000CIV, 5000RPDA, 5000SS, Colt/Maxim 400, 500. Applies to Series 4000B, 4000CIV, 4000SS, 4000RP, 5000CIV, 5000RPDA, 5000SS, Colt/Maxim 400, 500; Charts display catastrophic or worst-case discharge rates; Data derived by pressurizing outlet with second check valve internals removed; Flow rates provided in both LPM and GPM. connectionSize: 1/4", 3/8", 1/2", 3/4", 1", 1-1/4"
Flow RateUp to 140 gpm (532 lpm) at 1-1/4" size.
