DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

Carlisle SynTecAnchor Products Snow Retention System

Carlisle SynTec Snow Retention System. Model Anchor Products Snow Retention System. Designed for Carlisle single-ply roofing systems; Fully waterproof with no sealants or caulking required; Tighten flange nuts to 20-25 ft-lbs; Splices must not be located within 6" of a bracket. material: Stainless steel, aluminum, or other non-corrosive materials

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFAnchor-Products-Snow-Retention-System.pdfData sheet

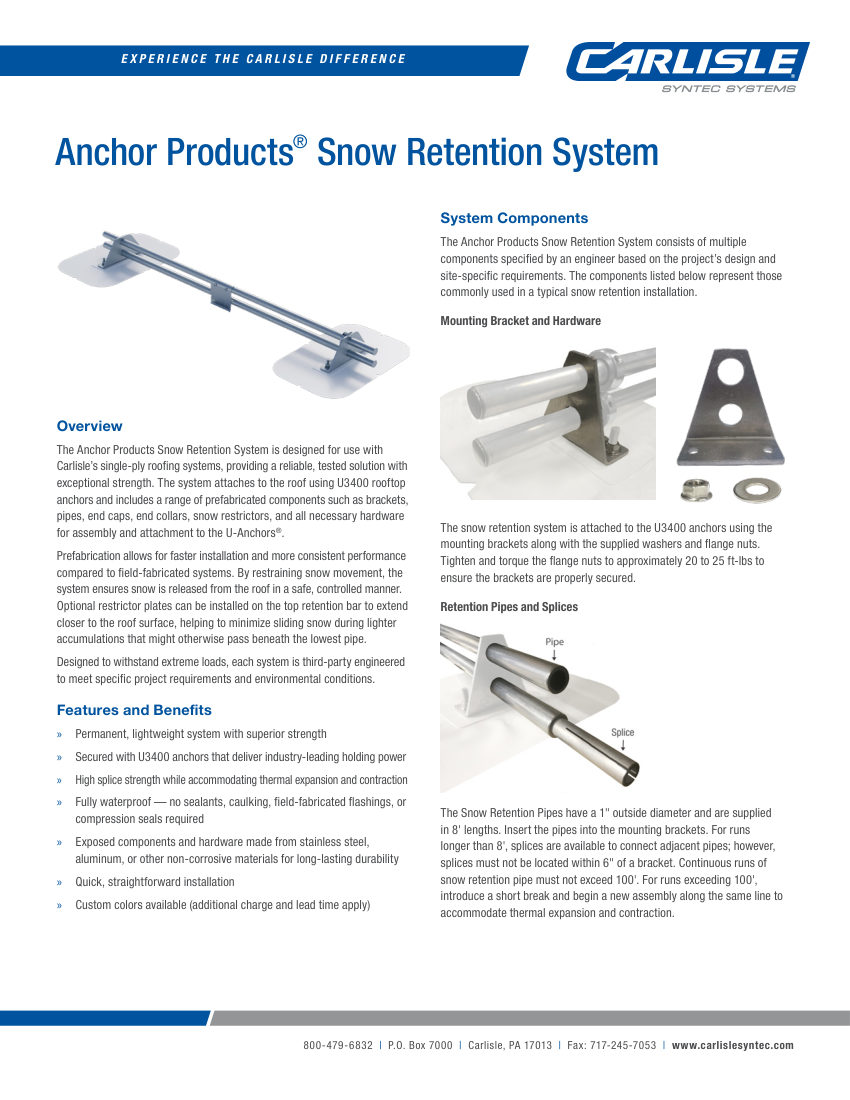

Carlisle SynTec Anchor Products Snow Retention System cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Carlisle SynTec
Catalog no.
Anchor Products Snow Retention System
Product type
Roofing
MasterFormat
07 50 00
Cut sheet
PDF · manufacturer current

Product details

Catalog numberAnchor Products Snow Retention System
DescriptionCarlisle SynTec Snow Retention System. Model Anchor Products Snow Retention System. Designed for Carlisle single-ply roofing systems; Fully waterproof with no sealants or caulking required; Tighten flange nuts to 20-25 ft-lbs; Splices must not be located within 6" of a bracket. material: Stainless steel, aluminum, or other non-corrosive materials
Connection size1" outside diameter
End connectionU3400 rooftop anchors
FinishCustom colors available
MountingU3400 anchors with mounting brackets, washers, and flange nuts
DimensionsPipes supplied in 8' lengths; continuous runs max 100'.
