Carlisle SynTecCD-10 Concrete Fastener

Carlisle SynTec Concrete Fastener (Fasteners). Model CD-10. Pull-out values in cured concrete (3,000 psi) are over 800 lbs; Corrosion-resistant coating exhibits less than 15% red rust after 30 Kesternich cycles; Requires pre-drilled 7/32" hole using carbide drill bit; Minimum fastener embedment into deck is 1 inch. material: Steel with CR-10 coating

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFCD-10-Concrete-Fastener.pdfData sheet

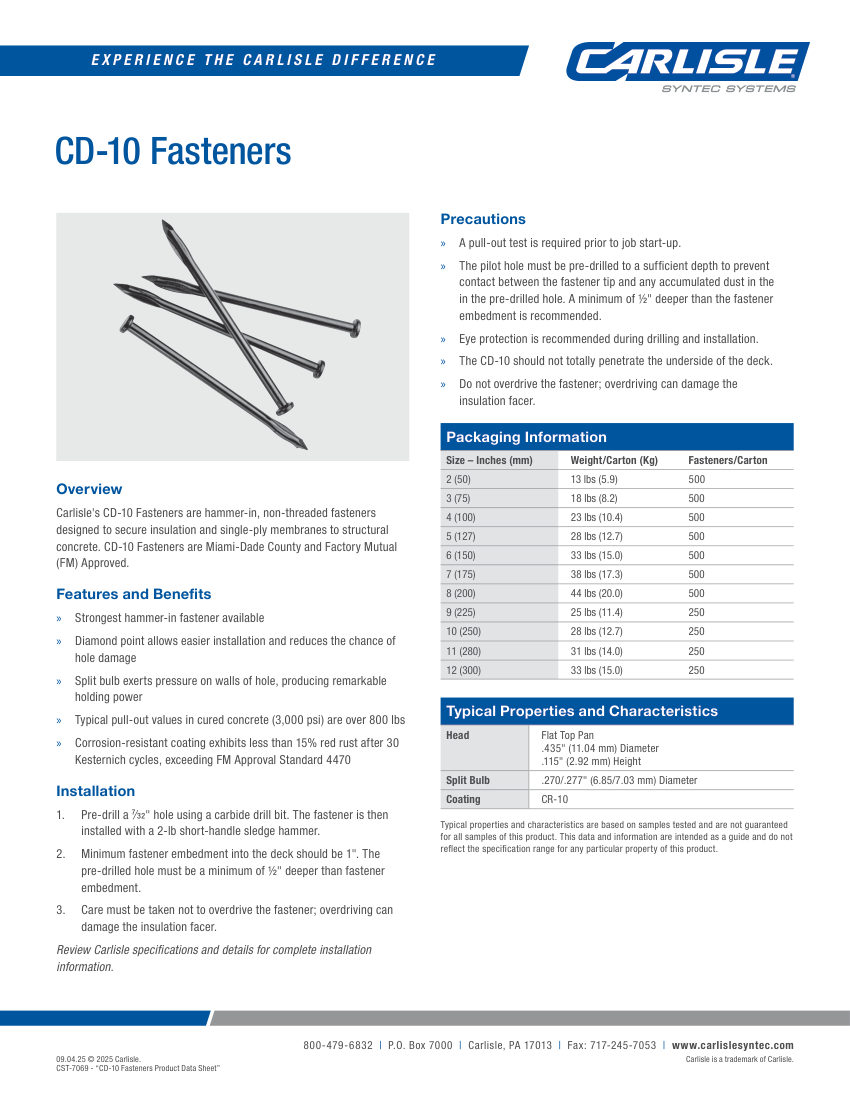

Carlisle SynTec CD-10 Concrete Fastener cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Carlisle SynTec
Catalog no.
CD-10 Concrete Fastener
Product type
Roofing
MasterFormat
07 50 00
Cut sheet
PDF · manufacturer current

Product details

Catalog numberCD-10 Concrete Fastener
DescriptionCarlisle SynTec Concrete Fastener (Fasteners). Model CD-10. Pull-out values in cured concrete (3,000 psi) are over 800 lbs; Corrosion-resistant coating exhibits less than 15% red rust after 30 Kesternich cycles; Requires pre-drilled 7/32" hole using carbide drill bit; Minimum fastener embedment into deck is 1 inch. material: Steel with CR-10 coating
Connection size2-12 inches (50-300 mm)
End connectionSplit bulb, Diamond point
FinishCR-10
MountingHammer-in
DimensionsHead: 0.435" (11.04 mm) Diameter x 0.115" (2.92 mm) Height
Split Bulb0.270/0.277" (6.85/7.03 mm) Diameter.
