DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

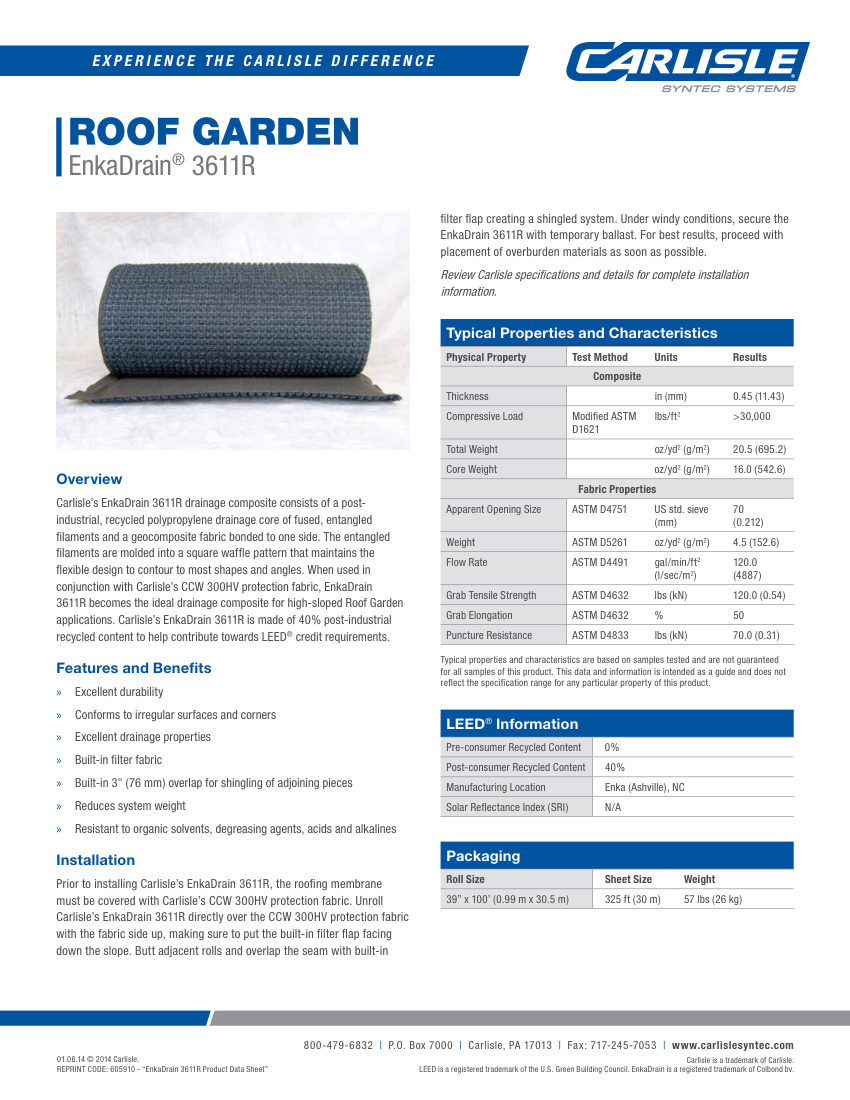

Carlisle SynTecEnkaDrain 3611R

Name: Carlisle SynTec EnkaDrain 3611R
Brand: Carlisle SynTec
SKU: EnkaDrain 3611R

Carlisle SynTec Roof Garden Drainage Composite (Drainage Composite). Model EnkaDrain 3611R. Composite thickness: 0.45 in (11.43 mm)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	EnkaDrain 3611R
Description	Carlisle SynTec Roof Garden Drainage Composite (Drainage Composite). Model EnkaDrain 3611R. Composite thickness: 0.45 in (11.43 mm)
Flow rate	120.0 gal/min/ft² (4887 l/sec/m²)
Compressive load	>30,000 lbs/ft²
Total weight	20.5 oz/yd² (695.2 g/m²). material: Recycled polypropylene drainage core and geocomposite fabric
Flow Rate	120.0 gal/min/ft² (4887 l/sec/m²)
Mounting	Shingled with built-in 3" (76 mm) overlap
Dimensions	0.45 in (11.43 mm) thickness; 39" x 100' (0.99 m x 30.5 m) roll size
Compliance	LEED credit eligible (40% post-industrial recycled content).
