DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

Carlisle SynTecGeoTough EPDM

Carlisle SynTec EPDM Waterproofing Liner (Geosynthetic Membrane). Model GeoTough EPDM. Non-reinforced elastomeric membrane for water containment; Break strength of 1305 PSI (9.0 MPa); Break elongation of 300%; Specific gravity of 1.19 g/cc. material: Ethylene Propylene Diene Terpolymer (EPDM)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFGeoTough-EPDM.pdfData sheet

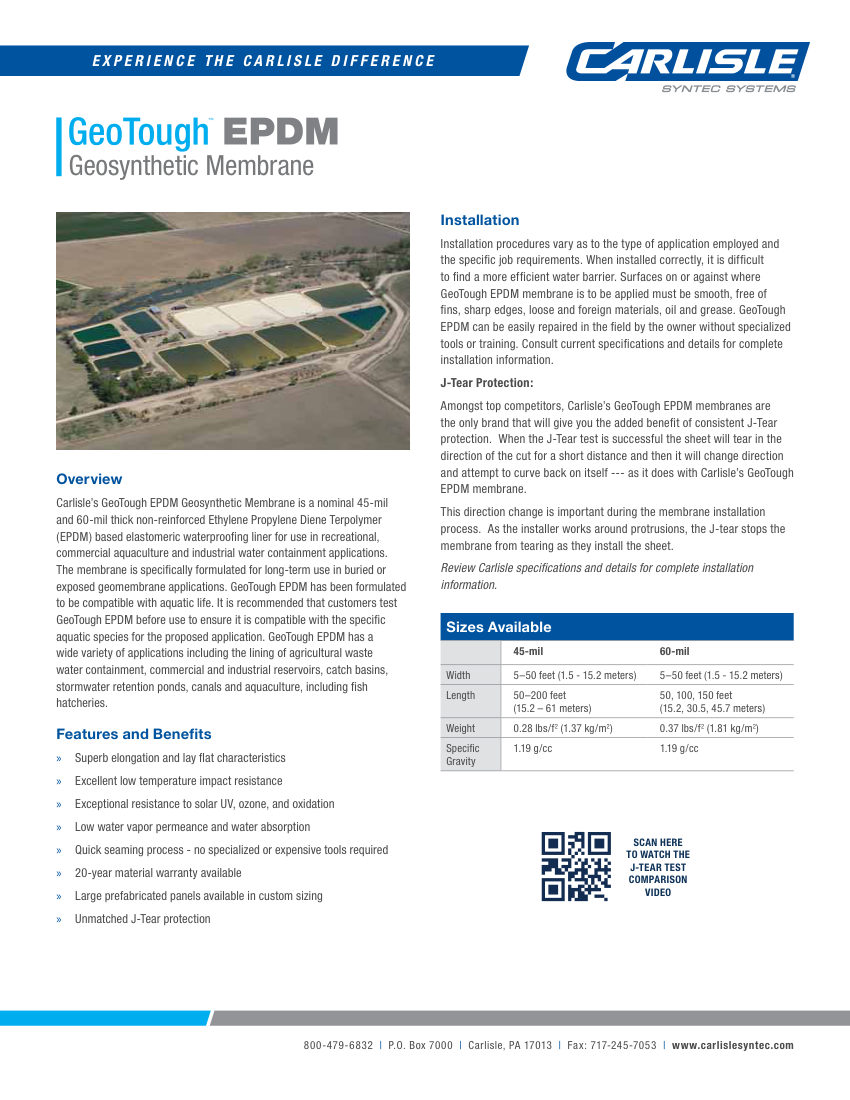

Carlisle SynTec GeoTough EPDM cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Carlisle SynTec
Catalog no.
GeoTough EPDM
Product type
Roofing
MasterFormat
07 53 00
Cut sheet
PDF · manufacturer current

Product details

Catalog numberGeoTough EPDM
DescriptionCarlisle SynTec EPDM Waterproofing Liner (Geosynthetic Membrane). Model GeoTough EPDM. Non-reinforced elastomeric membrane for water containment; Break strength of 1305 PSI (9.0 MPa); Break elongation of 300%; Specific gravity of 1.19 g/cc. material: Ethylene Propylene Diene Terpolymer (EPDM)
Dimensions45-mil (1.14 mm) and 60-mil (1.52 mm) thickness; Width 5-50 ft; Length 50-200 ft
ComplianceASTM D412, ASTM D624.
